EverFocus EZN1240-SG (NDAA)

描述

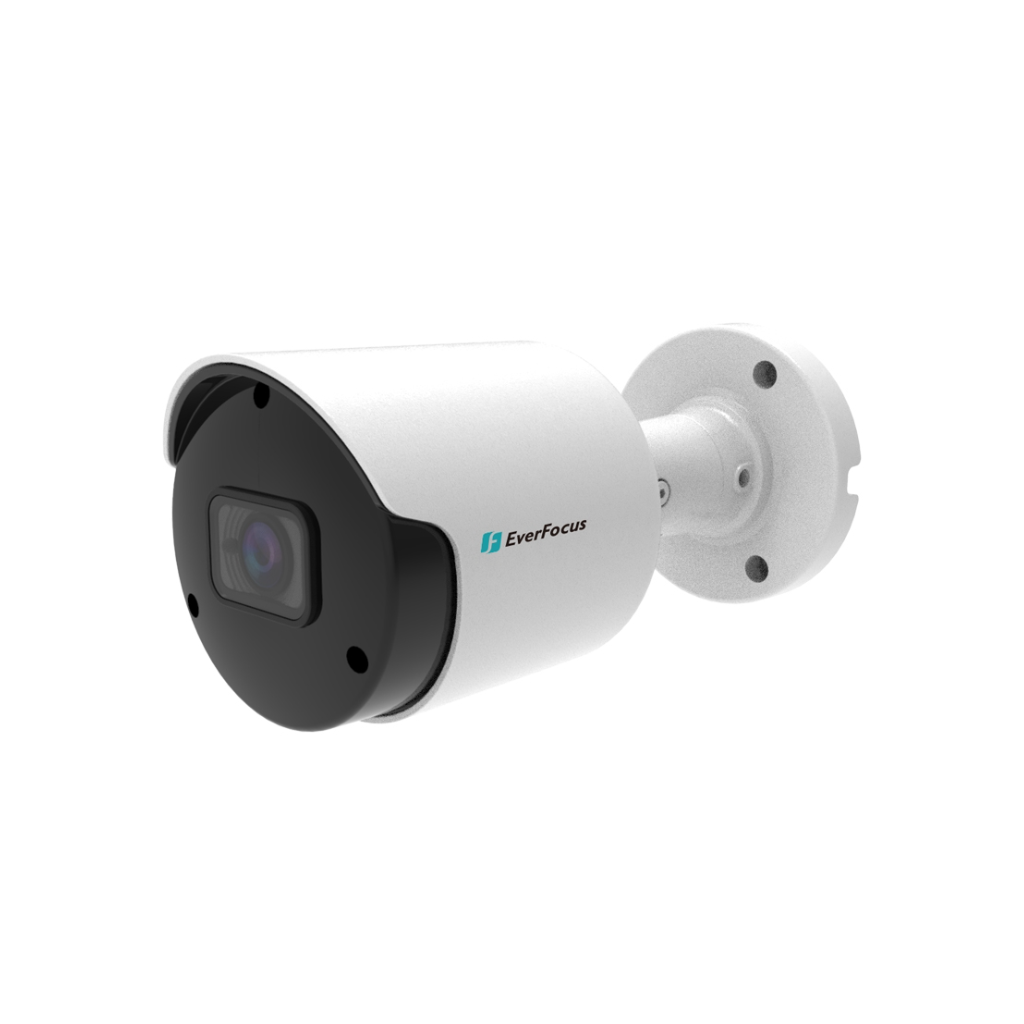

EverFocus EZN1240-SG (NDAA)

2-Megapixel IR & WDR, Outdoor Mini Bullet Network Camera



Features

• 2MP Progressive scan CMOS sensor
• Equipped with 3.6mm fixed lens
• Multi-streaming from H.265 / H.264
• Supports D-WDR
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 30m / 98ft with 18 LEDs (depends on scene IR reflectivity)
• Supports ONVIF (V2.6, Profile S, Profile G)
• Weather-proof IP66 rated
• Supports live monitoring via mobile Apps (iOS & Android)
• Supports PoE and 12VDC



Specifications

Pickup Device2MP Progressive scan CMOS sensor
Lens3.6mm fixed lens
FOVH:86.1°, V:46°, D:104°
F No.F2.3±10%
Minimum IlluminationColor 0.05lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON
Day/NightIR cut filter with auto switch (Day/Night/Auto/Schedule)
Shutter1/5 ~ 1/20,000s
Video CompressionH.265 / H.264
Frame RateMain stream 1080P(1920×1080) Sub stream VGA(640×480)
S/N Ratio40db (AGC Off)
AGCSupported
Triple StreamsNot supported (supports dual streams)
AWBSupported
WDRD-WDR
3DNRSupported
SD Card SlotSupported
Password ProtectionSupported
Alarm Input / OutputNot supported
Reset ButtonSupported
InterfaceRJ-45 10M/100M x 1
Supported ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
ConnectorDC Jack, RJ-45
Image SettingsFlip, Saturation, Brightness, Contrast, Hue, Sharpness
Video AnalyticsNot supported
Event TriggerMotion, I/O
NotificationEmail Notification
IR LED18 units (SMD)
IR Distance30m / 98ft.
Power Supply12VDC
Power over EthernetPoE IEEE802.3af (Class 3)
Max. Power Consumption12VDC ≤7W / PoE 5.3W
Humidity≤95% not condensing
Operating Temperature-30°C ~ +60°C
Dimensions (Φ) x (H)Ø100 x 90mm
Weight420g
Weather ResistanceIP66
