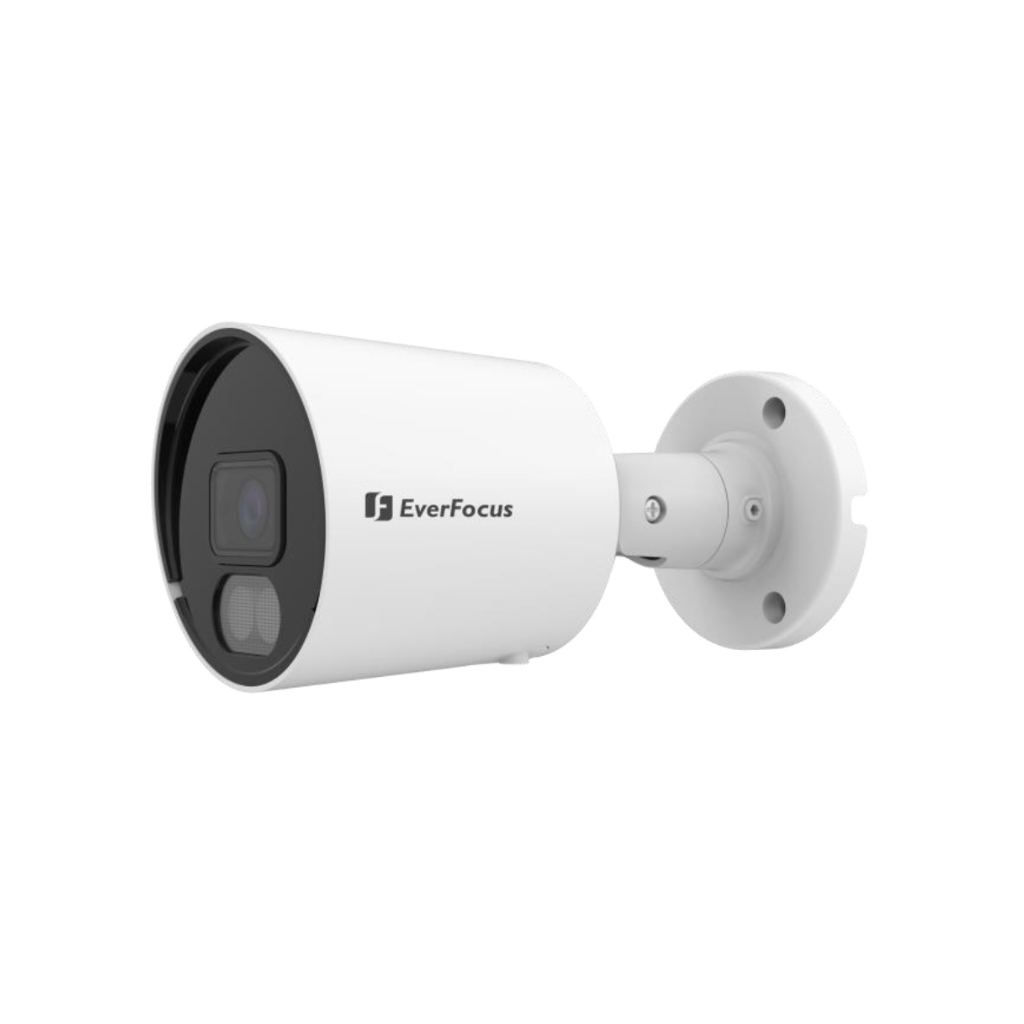

EverFocus EZN3840-NV (NDAA)
8-Megapixel IR & WDR, Full Color Outdoor Bullet Network Camera
Features
- 8MP Progressive scan CMOS sensor
- Equipped with 3.6mm fixed lens
- 24/7 Full color imaging
- Triple-streaming from H.265 / H.264
- Supports DWDR, 3DNR
- Warm supplemental light (WL) with 25M
- Extended IR range up to 30m / 98ft.
- Provides True Day/Night functionality with automatic IR filter operation
- Support smart video analytics
- Supports ONVIF
- Weather-proof IP66 rated
- Supports PoE and 12VDC
Specifications
| S/N Ratio | 36db |
| Pickup Device | 1/2.7″, 8.0 megapixel, progressive scan, CMOS |
| Lens | 3.6mm, fixed lens |
| FOV | Horizontal: 88.01°, Vertical: 47.53°, Diagonal:104.24° |
| F No. | 1.0 |
| Minimum Illumination | Color 0.0005 Lux @（F1.0，AGC ON）; B/W 0 lux @ IR ON |
| Day/Night | Full Color Mode/Day & Night Mode/Schedule |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265/H.264 |
| Frame Rate | 25fps@8MP,5MP,4MP,3MP,2MP,960P,720P,VGA,QVGA |
| AGC | Auto |
| Triple Streams | Supported |
| AWB | Auto/Manual |
| WDR | DWDR |
| 3DNR | Supported |
| Audio | Built-in microphone |
| SD Card Slot | Micro SD slot, up to 256GB |
| Password Protection | IP address filter, complicated password, Authenticated username and password |
| Alarm Input / Output | NA |
| Reset Button | Supported |
| Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Video Analytics | Supported |
| IR Distance | 30m / 98ft. |
| Power Supply | DC12V |
| Power over Ethernet | IEEE802.3af |
| Max. Power Consumption | Max 8.5W |
| Humidity | less than ≤ 95% RH |
| Operating Temperature | -30°C ~ 55°C / -22°F ~ 131°F |
| Dimensions (Φ) x (H) | Ø69.3×151.3mm |
| Weight | appr 359g |
| Weather Resistance | IP66 |
