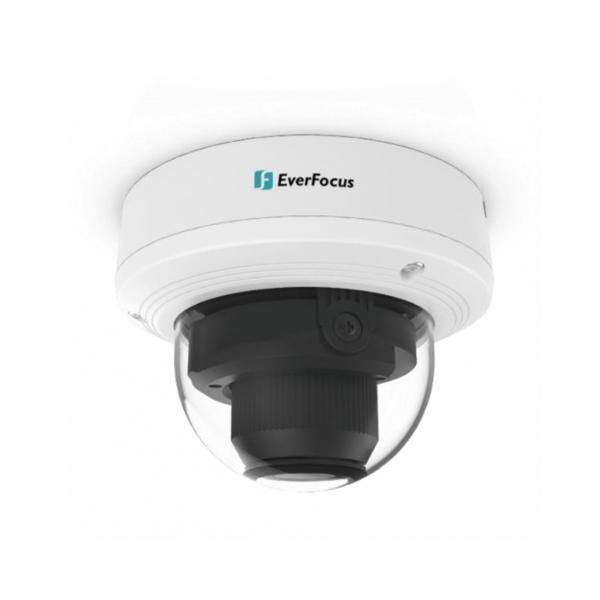

EverFocus EHN1250-SG (NDAA)
2-Megapixel IR & WDR, Outdoor Dome Network Camera
Features
• 2MP Progressive scan CMOS sensor
• Equipped with 2.8~12mm motorized lens
• Dual-streaming from H.265 / H.264
• Supports 3D-DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specifications
Pickup Device | 1/2.7″, 2.0 megapixel, progressive scan, CMOS |
Lens | 2.8-12mm, motorized lens, F1.8-3.3 |
FOV | H:107.85°(W)-34.6°(T)V:55.31°(W)-19.5°(T)D:135.5°(W)-39.8°(T) |
F No. | 1.2m(W/T) |
Minimum Illumination | Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
Day/Night | IR cut filter with auto switch(Day/Night/Auto/Schedule) |
Shutter | 1/5 ~ 1/20000s |
Video Compression | H.265/H.264 |
Frame Rate | Main Stream 1080P(1920×1080) Sub Steam VGA(640×480) |
AGC | Supported |
Triple Streams | Supported |
AWB | Auto/Manual/Indoor |
WDR | Supported |
3DNR | Supported |
Video Output | Supported |
Audio | 1 input (RCA), 1 output (RCA) |
SD Card Slot | Micro SD slot, up to 256GB |
Password Protection | Supported |
Alarm Input / Output | 1 input, 1 output |
Reset Button | Supported |
Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
Connector | DC Jack, RJ-45 |
Video Analytics | Motion detection(8 Level) |
IR Distance | Up to 45m (148ft) IR range |
Power Supply | DC 12V±25%, PoE (IEEE 802.3af) |
Power over Ethernet | PoE (IEEE 802.3af) |
Max. Power Consumption | Power consumption: 7W max |
Operating Temperature | -30~+55°C/less than ≤ 95% RH |
Dimensions (Φ) x (H) | Ø148.7x109mm |
Weight | appr 960g |
Weather Resistance | IP66 |
