描述
EverFocus EZNU240 是 2MP LightHunter 紅外定焦槍型網絡鏡頭，1/2.8 吋 CMOS，支援越線、區域入侵等智能偵測，並以目標分類減少誤報。香港防盜為安裝商及經銷商，規格以原廠為準。

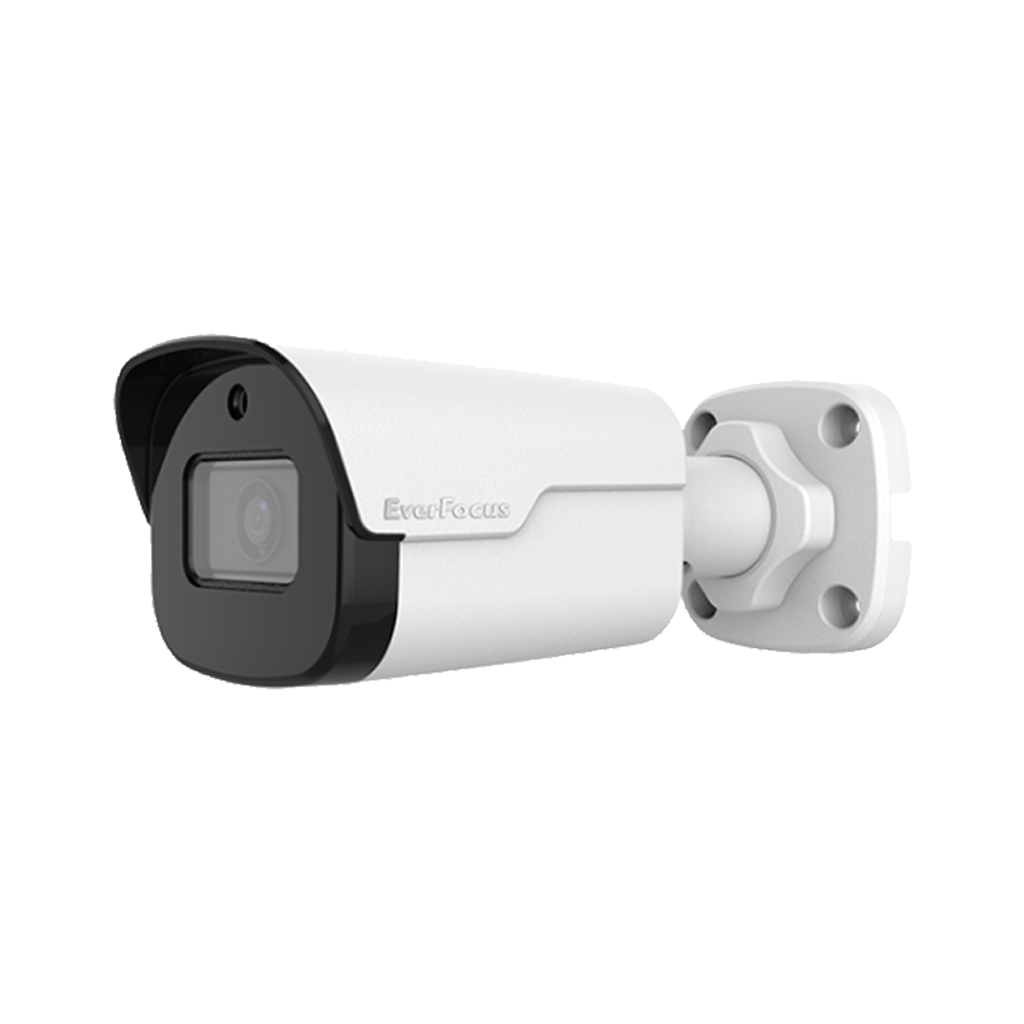

EverFocus EZNU240
2MP HD Intelligent LightHunter IR Fixed Bullet Network Camera
Features
• High quality imaging with 2MP, 1/2.8″CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention, significantly reduce false alarm caused by leaves, birds and lights etc. Accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent face capture、Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear imaging in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
Specifications
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS |
| Lens | [email protected] |
| DORI Distance | Lens 2.8/4.0, Detect (m) 43.4/62.1, Observe (m) 17.4/24.8, Recognize (m) 8.7/12.4, Identify (m) 4.3/6.2 |
| Angle of View (H) | 87.5° |
| Angle of View (V) | 92.4° |
| Angle of View (O) | 92.4° |
| Adjustment angle | Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Color: 0.001Lux (F1.6, AGC ON) / B/W: 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D / 3D DNR |
| S/N | >52 dB |
| IR Range | Up to 40m (131ft) IR range |
| Wavelength | 850mm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120db |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| OSD | Up to 8 OSDs |
| ROI | Up to 8 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Audio Compression | G.711 |
| Suppression | Supported |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Smart intrusion prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
| Face capture | Supported |
| Statistical Analysis | People counting |
| Basic Detection | Motion detection, tampering alarm, audio detection |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below / Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Power | DC 12V±25% , PoE (IEEE 802.3af), Power consumption: Max 6.0W |
| Dimensions (Ø x H) | 155.9 × 63.1 × 62.7mm (6.1” × 2.5” × 2.5”) |
| Weight | 0.42kg (0.93lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
| Reset button | Supported |
