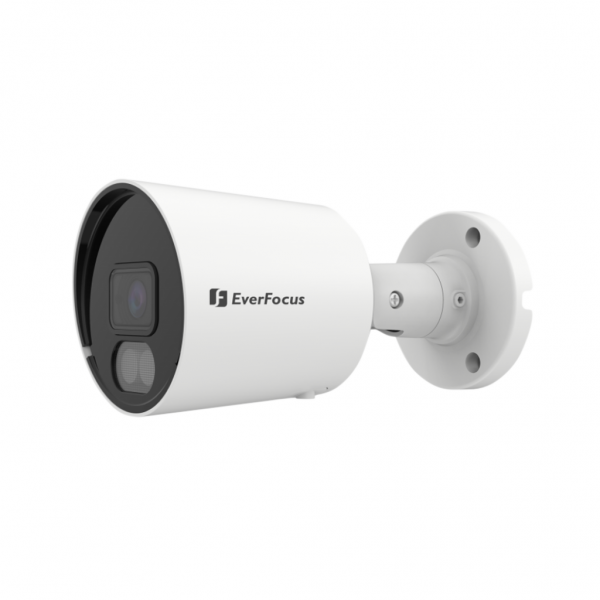

EverFocus EZN3540-NV(MIT)
5-Megapixel IR & WDR, Full color Outdoor Bullet Network Camera
Features
- 8MP Progressive scan CMOS sensor
- Equipped with 3.6mm fixed lens
- 24/7 Full-color imaging
- Triple-streaming from H.265 / H.264
- Supports DWDR, 3DNR
- Warm supplemental light (WL) with 25M
- Extended IR range up to 30m / 98ft.
- Provides True Day/Night functionality with automatic IR filter operation
- Support smart video analytics
- Supports ONVIF
- Weather-proof IP66 rated
- Supports PoE and 12VDC
Specifications
| Pickup Device | 1/2.7″, 5.0 megapixel, progressive scan, CMOS |
| Lens | 3.6 mm, F No. 1.0 |
| FOV | Horizontal: 88.3°, Vertical: 47.8°, Diagonal: 104.7° |
| F No. | F No. 1.0 |
| Minimum Illumination | Color 0.0002 Lux @（F1.2，AGC ON）; B/W 0 lux @ IR ON |
| Day/Night | Full Color Mode/Day & Night Mode/Schedule |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265/H.264 |
| Frame Rate | Mainstream@30fps 5MP(2880×1620),4MP(2592×1520) 3MP(2304×1296),1080P(1920×1080),960P(1280×960),720P(1280×720) substream@30fps 720P(1280×720),VGA(640×480),QVGA(320×240) Mobilestream@30fps VGA(640×480), QVGA（320×240） |
| S/N Ratio | 39db |
| AGC | Auto |
| Triple Streams | supported |
| AWB | Auto/Manual |
| WDR | WDR, 120dB |
| 3DNR | Supported |
| Audio | Built-in microphone |
| SD Card Slot | Micro SD slot, up to 256GB |
| Password Protection | Supported |
| Alarm Input / Output | NA |
| Reset Button | Supported |
| Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| IR Distance | Up to 30m |
| Power Supply | 12DV |
| Power over Ethernet | POE(IEEE802.3af) |
| Max. Power Consumption | 8.5W |
| Humidity | less than ≤ 95% RH |
| Operating Temperature | -30～+60°C |
| Dimensions (Φ) x (H) | 151.3*74.1*74.1mm |
| Weight | appr 355g |
| Weather Resistance | IP67 |
