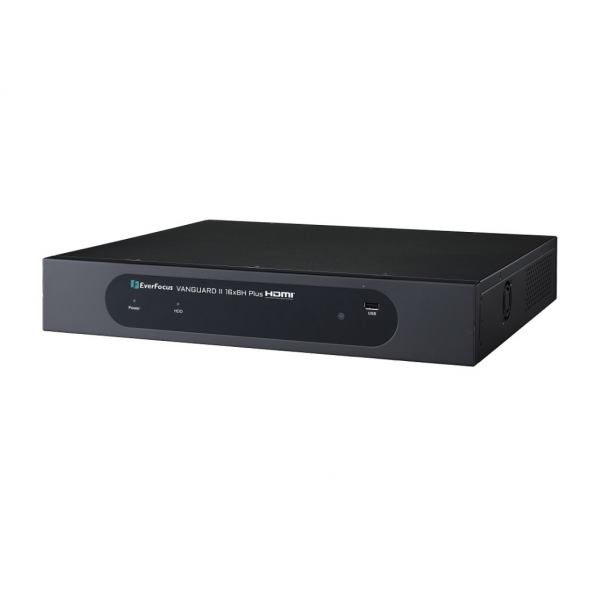

EverFocus VANGUARD II 16x8H PLUS
16CH, H.265, 8MP XVR
Features
• Supports hybrid mode:
Analog: Up to 16CH 8MP AHD/TVI/CVBS cameras
IP: Up to 8CH 8MP IP cameras
• Megapixel resolution over standard coaxial / UTP cable
• Supports H.265 / H.264 compression format
• Supports cloud storage with Dropbox (Snapshot)
• Supports 16CH looping outputs
• Supports ONVIF 2.0 IP cameras
• Control methods: mouse / IR remote controller
• Remote configuration from built-in web interface
• Supports video analytics
• Integrates with VANGUARD CMS
• Supports multi-language
• Supports mobile App: eFVMS App
Specifications
| Model | VANGUARD II 16x8H PLUS |
| Operating System | Embedded Linux |
| Number of Channels | Analog: Up to 16CH 8MP AHD/TVI/CVBS cameras IP: Up to 8CH 8MP IP cameras |
| RAM | 2GB |
| Watchdog | Supported |
| Dual Stream | Supported |
| OSD Menu | Supported |
| System Control | Mouse, IR remote control |
| Multiplex Operation | Live display, record, playback, backup and network |
| PTZ Protocol Supported | Pelco D, Pelco P |
| Compression Format | H.265 / H.264 |
| Video Format | NTSC / PAL |
| Video Inputs | Analog: 16 x BNC IP: 8CH 8MP IP cameras |
| Video Looping Outputs | 16 x BNC |
| Video outputs | HDMI/VGA: 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080 (1080P), 2560×1440 (2K), 3840×2160 (4K, HDMI only) |
| IP Bandwidth Incoming | Max. 64Mbps~192Mbps (default is 16Mbps, decrease one Analog channel can increase 4Mbps ) |
| IP Bandwidth Outgoing | Max. 192Mbps |
| Live Resolution / Frame Rate | Analog: 8MP : 15fps/CH; 1080P/720P/960H: 30fps/CH IP: 8MP/1080P/720P |
| Recording Resolution / Frame Rate | Analog: 8MP : 10fps/CH (PAL); 10fps/CH (NTSC); 1080P: 30fps/CH (PAL); 30fps/CH (NTSC) IP: 8MP/1080P/720P: 25fps/CH (PAL); 30fps/CH (NTSC) (each CH) |
| Recording Modes | Continuous/Manual/Motion Detect |
| Synchronized Playback | 16CH |
| Playback Performance | 8MP :144fps （Max 16CH playback ） 1080P: 480fps（Max 16CH playback） 720P:480fps（Max 16CH playback） |
| Search Modes | Time, Event, Motion in Recorded Video |
| Audio Input | 16 |
| Audio Output | 1 x RCA |
| Internal 3.5″ HDD | 4 x SATA HDD |
| External HDD | 1 x e-SATA storage |
| Storage Capacity | 8TB/disk |
| DVD Burner | Not supported |
| Ethernet | 10/100/1000 Ethernet |
| Ethernet Protocol | TCP-IP / DHCP / PPPoE / DDNS / SMTP / NTP |
| USB | 2 x USB2.0 (for mouse and backup/upgrade); 1 x USB3.0 |
| RS485 | 1 x RS-485 (for PTZ Control) |
| Ethernet | 1 RJ-45 |
| Power Input | 12VDC / 5A (12VDC/8A optional) |
| Power Consumption | 60W max. (5A) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F (20 ~ 80% humidity) |
| Dimensions (W x D x H) | 430 x 399.3 x 79.5mm / 16.93″ x 15.72″ x 3.13″ |
| Weight (without HDDs) | 6kg / 13.2lb |
| Language | English, Japanese, Traditional Chinese, German, Russian, Dutch, Italian |
| Video Pause | Yes |
| Video Loss Detection | Yes |
| Motion Detection | Yes |
| Event Log | Yes |
| User Interface | GUI (Graphical User Interface) |
| Control PTZ via OSD | Yes (via both local and remote interfaces) |
| Schedule Setting | Yes |
| User Access | 2 Levels of User Access Defined |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Foreign/Missing Object Detection, Pedestrian Detection, Face Detection, Cross-Counting Detection, Sound Detection, Tamper Detection |
| Operating System | Win7 (32 and 64-bit) / Win10 (32 and 64-bit) |
| CPU | Intel Core I3-2100 |
| RAM | 2GB |
| Graphics | Intel HD 2000 |
| LAN Speed | 10 / 100 / 1000 Mbps (RJ45) |
| Web Browser | IE11 and later |
| Other Remote Application | 1. EverFocus VANGUARD CMS 2. EverFocus eFVMS (mobile app) |
