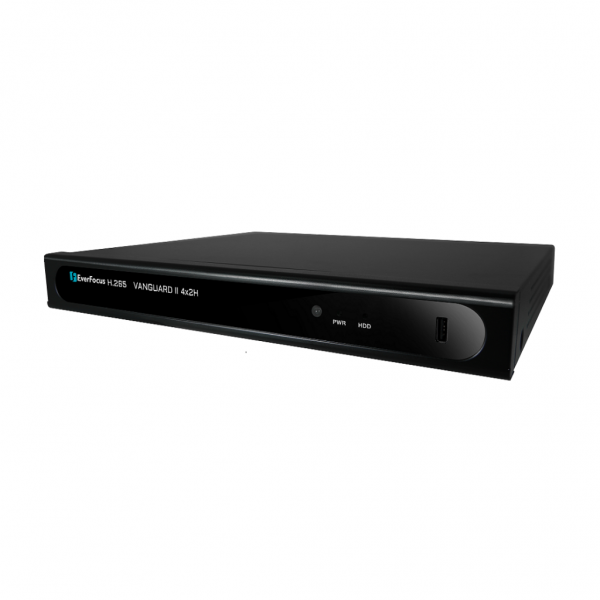

EverFocus VANGUARD II 4x2H
04CH, H.265, 8MP XVR
Features
- Supports hybrid mode:Analog: Up to 4CH 8MP AHD/TVI/CVBS camerasIP: Up to 2CH 8MP IP cameras (up to 6CH if only IP cameras are connected)
- Supports H.265 / H.264 compression format
- Supports cloud storage with Dropbox (Snapshot)
- Supports ONVIF 2.0 IP cameras
- Control methods: mouse / IR remote controller
- Remote configuration from built-in web interface
- Supports video analytics
- Integrates with EverFocus CMS
- Supports multi-language
- Supports mobile App: eFVMS App
Specifications
| Operating System | Embedded Linux |
| Number of Channels | Analog: Up to 4CH 8MP AHD/TVI/CVBS cameras IP: Up to 2CH 8MP IP cameras (up to 6CH if only IP cameras are connected) |
| RAM | 1GB |
| Watchdog | Supported |
| Dual Stream | Supported |
| OSD Menu | Supported |
| System Control | Mouse, IR remote control |
| Multiplex Operation | Live display, record, playback, backup and network |
| PTZ Protocol Supported | Pelco D, Pelco P |
| Compression Format | H.265 / H.264 |
| Video Format | NTSC / PAL |
| Video Inputs | Analog: 4 x BNC IP: Up to 2CH 8MP IP cameras (up to 6CH if only IP cameras are connected) |
| Video Looping Outputs | Unsupported |
| Video outputs | HDMI/VGA/CVBS: 704×576 (CVBS only), 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080 (1080P), 2560×1440 (2K HDMI only), 3840×2160 (4K, HDMI only) |
| IP Bandwidth Incoming | Max. 12Mbps ~ 36Mbps (default is 12Mbps, decrease one Analog channel can increase 6Mbps ) |
| IP Bandwidth Outgoing | Max. 48Mbps |
| Live Resolution / Frame Rate | Analog: 8MP: 15fps/CH; 5MP: 20fps/CH; 4MP/1080P/720P/960H: 30fps/CH IP: 8MP/4MP/1080P/720P (Single IP channel preview up to 4K 30 fps multi-channel preview only substream) |
| Recording Resolution / Frame Rate | Analog: 8MP: 7fps (each ch); 5MP: 12fps (each ch); 4MP:15fps (each ch); 1080P:PAL:25fps(each ch)/NTSC:30fps(each ch) IP: PAL: 25fps (each ch)/NTSC: 30fps (each ch) Sub-stream Max PAL：704*576:10fps (each ch) / NTSC：704*480:10fps (each ch) |
| Recording Modes | Continuous/Manual/Motion Detect |
| Synchronized Playback | 4CH |
| Playback Performance | 8MP: 28fps 5MP: 48fps 4MP: 60fps（Max 4CH playback） 1080P, 720P: 120fps（Max 4CH playback） |
| Search Modes | Time, Event, Motion in Recorded Video |
| Audio Input | 4 |
| Audio Output | 1 x RCA |
| Internal 3.5″ HDD | 2 x SATA HDD |
| External HDD | NA |
| Storage Capacity | 8TB/disk |
| DVD Burner | Not supported |
| Ethernet | 10/100 Ethernet |
| Ethernet Protocol | TCP-IP / DHCP / PPPoE / DDNS / SMTP / NTP |
| USB | 1 x USB2.0 (for mouse and backup/upgrade); 1 x USB2.0 |
| RS485 | 1 x RS-485 (for PTZ Control) |
| Ethernet | 1 RJ-45 |
| Power Input | 12VDC / 5A |
| Power Consumption | 60W max. |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F (20 ~ 80% humidity) |
| Dimensions (W x D x H) | 378 x 318.2 x 52mm / 14.9″ x 12.5″ x 2″ |
| Weight (without HDDs) | 2.3kg / 5.07lb |
| Language | English, Japanese, Traditional Chinese, German, Russian, Dutch, Italian |
| Regulatory | CE, FCC |
| Video Pause | Yes |
| Video Loss Detection | Yes |
| Motion Detection | Yes |
| Event Log | Yes |
| User Interface | GUI (Graphical User Interface) |
| Control PTZ via OSD | Yes (via both local and remote interfaces) |
| Schedule Setting | Yes |
| User Access | 2 Levels of User Access Defined |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Foreign/Missing Object Detection, Pedestrian Detection, Face Detection, Cross-Counting Detection, Sound Detection, Tamper Detection |
| Operating System | Win7 (32 and 64-bit) / Win10 (32 and 64-bit) |
| CPU | Intel Core I3-2100 |
| RAM | 2GB |
| LAN Speed | 10 / 100 / 1000 Mbps (RJ45) |
| Web Browser | IE11 and later |
| Other Remote Application | 1. EverFocus CMS 2. EverFocus eFVMS (mobile app) |
