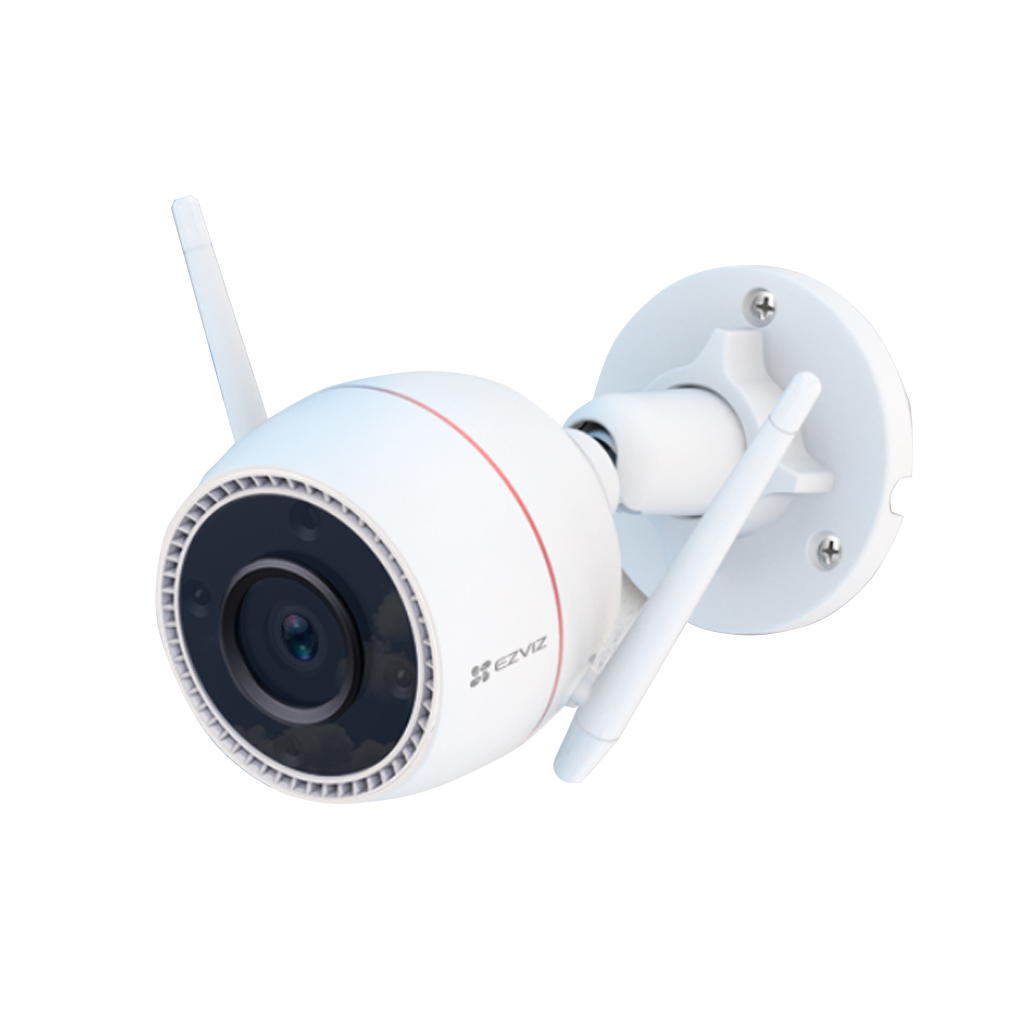

EZVIZ CS-C3TN (3MP)
C3TN 2K | Wi-Fi Smart Home Camera
Specification
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm @ F2.0, view angle: 109° (Horizontal), 126°(Diagonal) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Full HD; HD; Standard. Adaptive bit rate |
| Image | |
| Max. Resolution | 2304 × 1296 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Network | |
| User defined alarm tones | Supports |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Max. Bitrate | 1.5 Mbps |
| Interface | |
| Storage | Micro SD card slot (Max. 256 GB) |
| Wired network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
| Wi-Fi | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps |
| General | |
| Operating Conditions | -4°F to 122 °F (-20ºC to 50ºC ); Humidity 95% or less ( non-condensing) |
| Power Supply | DC 12V/1A |
| Power Consumption | Max. 6W |
| IP Grade | IP 67 |
| Night Vision Distance (Black/White Night Vision Mode) | Max. 30 m (98 ft) |
| Dimensions | 72 × 84 × 152 mm (2.83 × 3.31 × 5.98 inch) |
| Packaging Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Net Weight | 253 g (8.9 oz) |
