描述
Genetec Streamvault SV-4000E 是機架式保安伺服器設備，預載 Genetec Security Center，採用 RAID 6 NLSAS 錄影儲存，以 Windows Server 2022 運行，配兩顆 Intel Xeon 處理器及 iDRAC9 Enterprise 遠端管理。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：閉路電視安裝、錄影機及硬碟容量、Server Room 架設及維修。

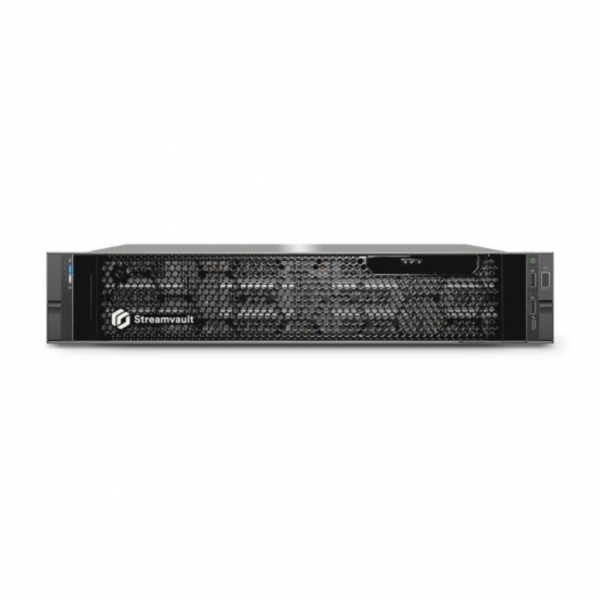

Genetec Streamvault SV-4000E
Turnkey rackmount security appliance
Key features
- Turnkey appliance with Genetec™ Security Center pre-installed
- NLSAS storage with RAID 6 configuration
- iDRAC9 Enterprise for local and remote server monitoring
- Machine learning endpoint protection
Technical specifications
OS
Windows Server 2022
Processor
SV-4040EX-R6S/R4/R12:
2x Intel® Xeon® Silver 4410Y
Passmark: 29,585
SV-4040EX-R26:
2x Intel® Xeon® Gold 5416S
Passmark: 36,391
Memory
64 GB DDR5
Ethernet
SV-4040EX-R6S/R4/R12/R28:
2x 1GbE RJ45, 2x 10/25GbE SFP28
Peripherals
1x USB 3.0, 1x USB 2.0
Video output
SV-4040E-R6S/R4/R12:
1x VGA front, 1x VGA rear
SV-4040E-R28:
1x VGA rear
Integrated Dell Remote Access Controller
iDRAC9 Enterprise
Performance
SV-4040EX-R6S/R4/R12:
Up to 2160 Mbps / 700 cameras
SV-4040EX-R28:
Up to 2220 Mbps / 850 cameras
Mechanical and environmental
Operating temperature
50°F to 95°F (10°C to 35°C)
Operating humidity
8 – 80% (non-condensing)
Compliance standards
IEC 60950-1, European Norm EN 60950-1, CISPR 22/CISPR 24, EN55022/55024
Expansion
SV-4040EX-R12: Up to 4x LP
SV-4040EX-R6S/R4/R28: Up to 2x LP
Storage
Drive type
Enterprise HDD
OS drive
2x 480GB M.2 NVMe (Hot Swappable)
Available drive sizes
4TB, 8TB, 12TB, 16TB, 20TB
RAID controller
SV-4040EX-R6S: H755 8GB NV cache
SV-4040EX-R4/R12: H755 8GB NV cache
SV-4040EX-R28: H965i 8GB NV Cache
Data RAID level
SV-4040EX-R6S: RAID1
SV-4040EX-R4/R12: RAID 5/6, RAID 10 available as an option
SV-4040EX-R28: RAID 6 or RAID 6 + 1 hot spare, RAID 10 available as an option
Maximum data storage
560 TB (raw); 450.3 TB (usable)
