描述
Genetec Streamvault SVS-7000E SAN 是 SAN 儲存陣列，配合 SV-7000EX 保安伺服器使用，每 5U 機箱原始容量最高 1.68 PB，連擴展櫃最高 6.72 PB，可經 HTML5 介面、CLI 或 REST 管理。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：閉路電視安裝、錄影機及硬碟容量、Server Room 架設及維修。

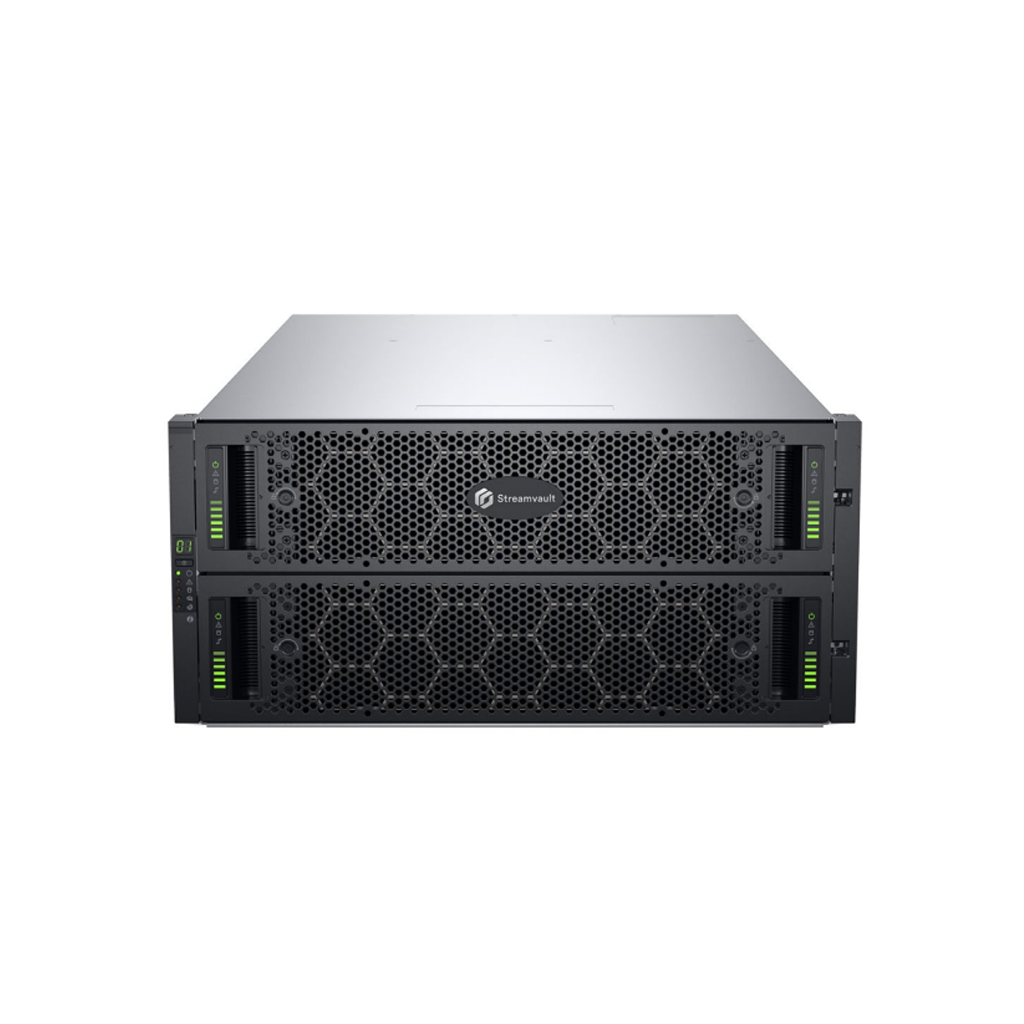

Genetec Streamvault SVS-7000E SAN
SAN storage array
Key features
- Compatible with SV-7000EX security appliances
- Up to 1.68 PB Raw Storage per 5U chassis
- 6.72 PB raw by headend unit with expansions
- Cyber hardened
Technical specifications
Management
MESM (HTML5 GUI, CLI, REST)
Mechanical and environmental
Form factor
5U Rackmount, 2U Rackmount
Power supply
SVS-7020E-R84:
2x 2200W PSU (200-240VAC)
Hard drive bays
SVS-7020E-R84:
84x 3.5” bays
Connectivity
16 Gb Fibre Channel, 10 Gb iSCSI
Ports
(4) Fibre Channel or (4) 25 GbE SFP28 (4)
Multiprotocol
Operating temperature
41°F to 104°F (5°C to 40°C)
Operating humidity
10 – 80% at 84.2°F (non-condensing)
Storage
Storage type
Storage Area Network (SAN)
Maximum data storage
SVS-7020E-R84:
1680TB (1.68PB) raw
1308.96 TB (1.3PB) usable
Expansion chassis supported
Up to 3 per base SAN array (Scales up to
6.72 PB of Raw Storage)
Drive type
12G dual-port SAS
Drive size
SVS-7020E-R84:
12 TB, 16 TB, 20 TB
RAID controllers
Dual controllers
Controller memory
32 GB (16 GB per controller)
Data RAID level
ADAPT (Distributed RAID),
RAID (0, 1, 5, 6, 10, 50)
