描述
HID iCLASS SE U90 是 HID 門禁讀頭，用於大堂、層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準；高貨值場地不應只用易複製卡。

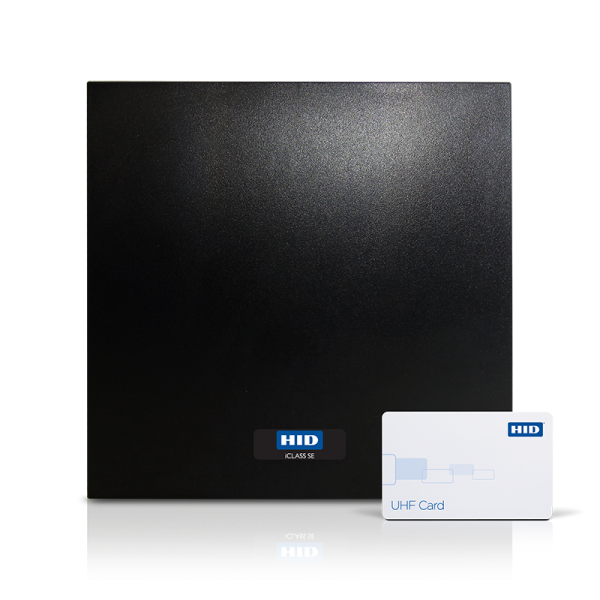

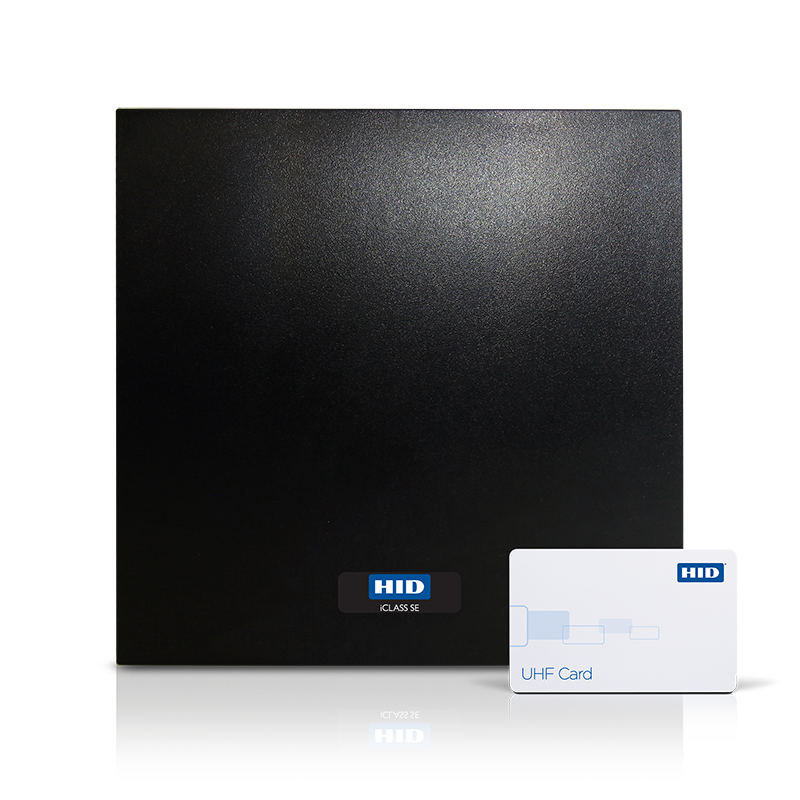

HID iCLASS SE U90
Contactless smart card reader – UHF long range
HID Global’s iCLASS SE U90 Long Range Reader offers an extended range solution for parking and gate control. The iCLASS SE U90 Long Range Reader features advanced encryption technology, delivering the most secure ultra-high frequency (UHF) access control on the market. With a read range of up to five meters, iCLASS SE U90 can securely read both single UHF and support a mixed UHF/iCLASS credential migration population. The ability to combine building access with parking and gate control on a single card or fob offers both convenience and security.
Key Features:
- Convenient – Discreet hands-free authentication solution for long range parking and gate control
- Dynamic – Field configurable via a full user interface for ease of maintenance
- Compliant – Supports UHF ISO 18000-6C compliant credentials containing Secure Identity Object® (SIO®) encryption technology
- Powerfully Secure – Encryption of card data through controller, enabling secure end-to-end communications
SPECIFICATIONS
Typical Maximum Read Range
3 to 5 meters (9.8 to 16.4 feet)
Transmit Frequency
865 – 868 MHz / 902 – 928 MHz dependent on regional regulations
Dimensions
9.10″ x 9.10″ x 2.75″ (23.1 cm x 23.1 cm x 7.0 cm)
Cards supported:
- HID, SIO Enabled Single Technology UHF
- HID, SIO Enable Dual Technology UHF/iCLASS
- UHF EPC, Class 1, Gen 2 ISO 18000-6C credentials
Input Voltage
12VDC or 24VDC
Environmental Rating
IP65
Communications
OSDP Support – SIA OSDP Version 1.0 and 2.1.x Wiegand mode – Wiegand Crypto-Processor Hardware
Common Criteria Rating
EAL 5+
Warranty
2 Years
