描述

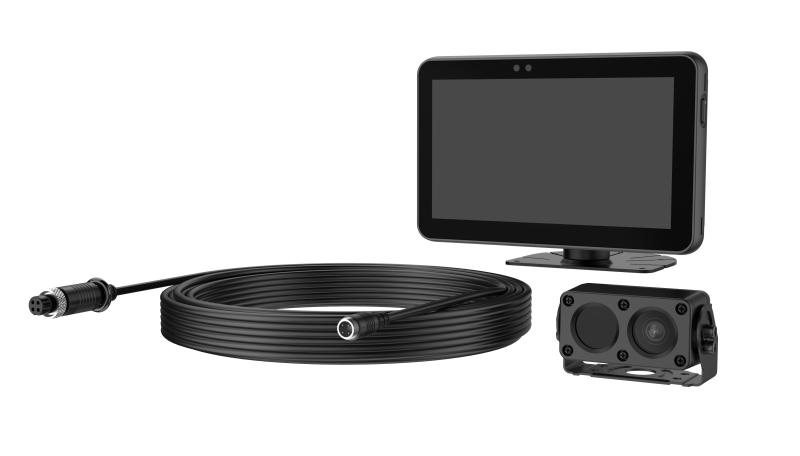

AE-MJ0710T/Reverse Camera Kit
Reverse Camera Kit
AE-MJ0710T/Reverse Camera Kit 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| FOV | 2.1 mm, horizontal FOV 98°, vertical FOV 81°, diagonal FOV 125° |
|---|---|
| Resolution | 1920 (H) × 1080 (V) |
| Frame Rate | 1080P@30fps/25 fps |
| IR Distance | 15m |
| Min. Illumination | 0.1 Lux@(F1.2, AGC ON), 0 Lux with IR |
| SNR | 42dB |
| Wide Dynamic Range | 85dB |
| Day ＆ Night | Automatic |
| White balance | Automatic |
| Camera Material | Metal |
| Protection Level | IP69K, IK10 |
| Power Consumption | Max. 2.5 W |
| Working Conditions | -40 °C to 75 °C (-40 °F to 167 °F), 95% |
Monitor
| Screen Size | 7 inch |
|---|---|
| Brightness | 600 cd/m² |
| Contrast Ratio | 1000:1 |
| TouchScreen | Supports capacitive touch screen (full lamination) |
| Buzzer | Support |
| Optical sensor | Support |
| Control Mode | Touch and Remote control |
| Working Voltage | DC 8-36V |
| Power Consumption | < 5.5W (without the camera connected) |
| Working Temperature | -20°C to +70°C (-4°F to +158°F) |
| Installation | Bracket, Wall mounting |
