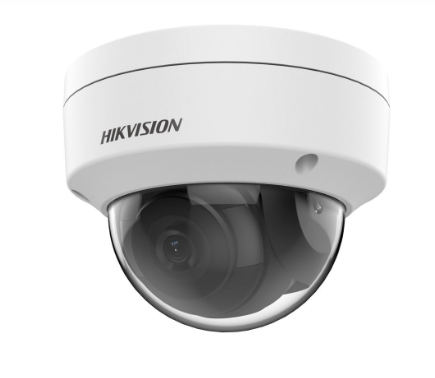

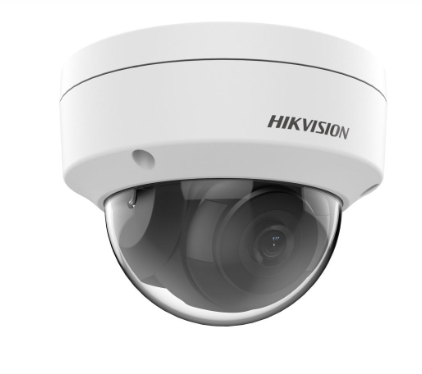

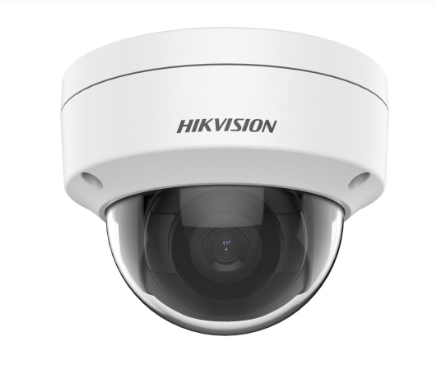

HIKVISION DS-2CD1123G0E-I

Camera

• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°

Lens

• Focal Length & FOV2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
• Lens MountM12
• FocusFixed
• ApertureF2.0

Illuminator

• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm

Video

• Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
• Video CompressionMain Stream: H.265/H.264/H.264+/H.265+Sub-Stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web BrowserPlug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+


• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email

General

• Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plugPoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• MaterialMetal & Plastic
• DimensionØ110 mm × 82.4 mm (Ø4.4″ × 3.2″)
• Package Dimension134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
• WeightApprox. 410 g (0.9 lb.)
• With Package WeightApprox. 610 g (1.3 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMCFCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
• SafetyUL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
• EnvironmentCE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)IK10 (IEC 62262:2002)
