描述

海康威視 DS-2CD1147G3H-LIU(F)(/SL)(/SRB) 是 4MP ColorVu 3.0 定焦半球網絡鏡頭，配 HikAI-ISP 降噪及 Motion Detection 3.0；/SL、/SRB 型號具雙向對講及警示燈。香港防盜為安裝商及經銷商，規格以原廠為準。

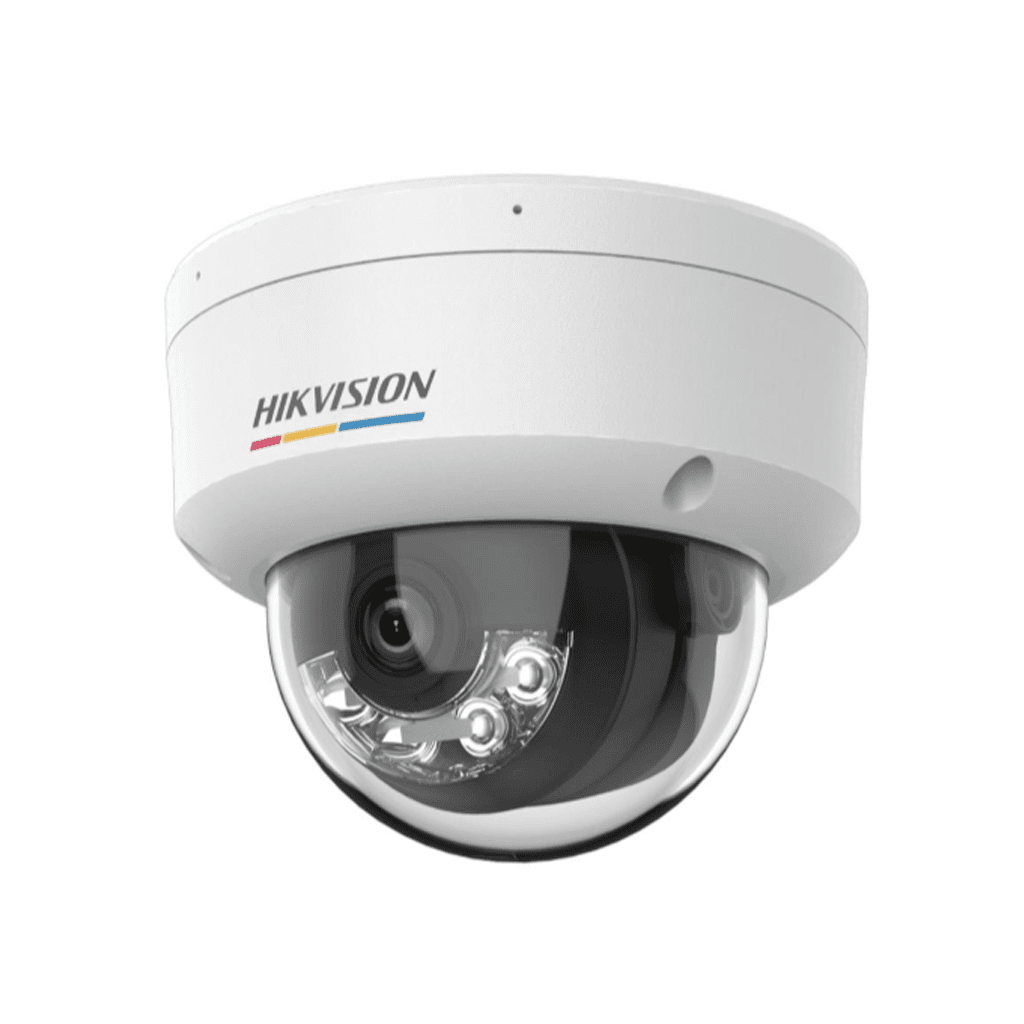

HIKVISION DS-2CD1147G3H-LIU(F)(/SL)(/SRB)

4 MP ColorVu 3.0 Fixed Dome Network Camera

HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Motion Detection 3.0, more accurate on person and vehicle classification
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
/SL/SRB: Provide real-time security via built-in two-way audio and strobe light alarm
-F: Support on-board storage up to 512 GB (SD card slot) (Optional)
Water and dust resistant (IP67), vandal-proof (IK08, for dome)

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.0001 Lux @ (F1.0, AGC ON)
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC,HLC,3D DNR
Privacy Mask	4 programmable polygon privacy masks
General
Power	12 VDC ± 25%, 0,6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
Material	Base: metal, cover: plastic
Dimension	Ø121.5 mm × 97.6 mm (Ø4.8″ × 3.8″)
Package Dimension	150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight	Approx. 490 g (1.1 lb.)
With Package Weight	Approx. 670 g (1.5 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
