描述
海康威視 DS-2CD1363G2P-LIUF/S(L)(RB) 是 6MP 雙鏡拼接廣角智能混合補光半球網絡鏡頭，視角 180°，支援人形及車輛偵測、H.265+、最大 512GB 記憶卡及雙向對講。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

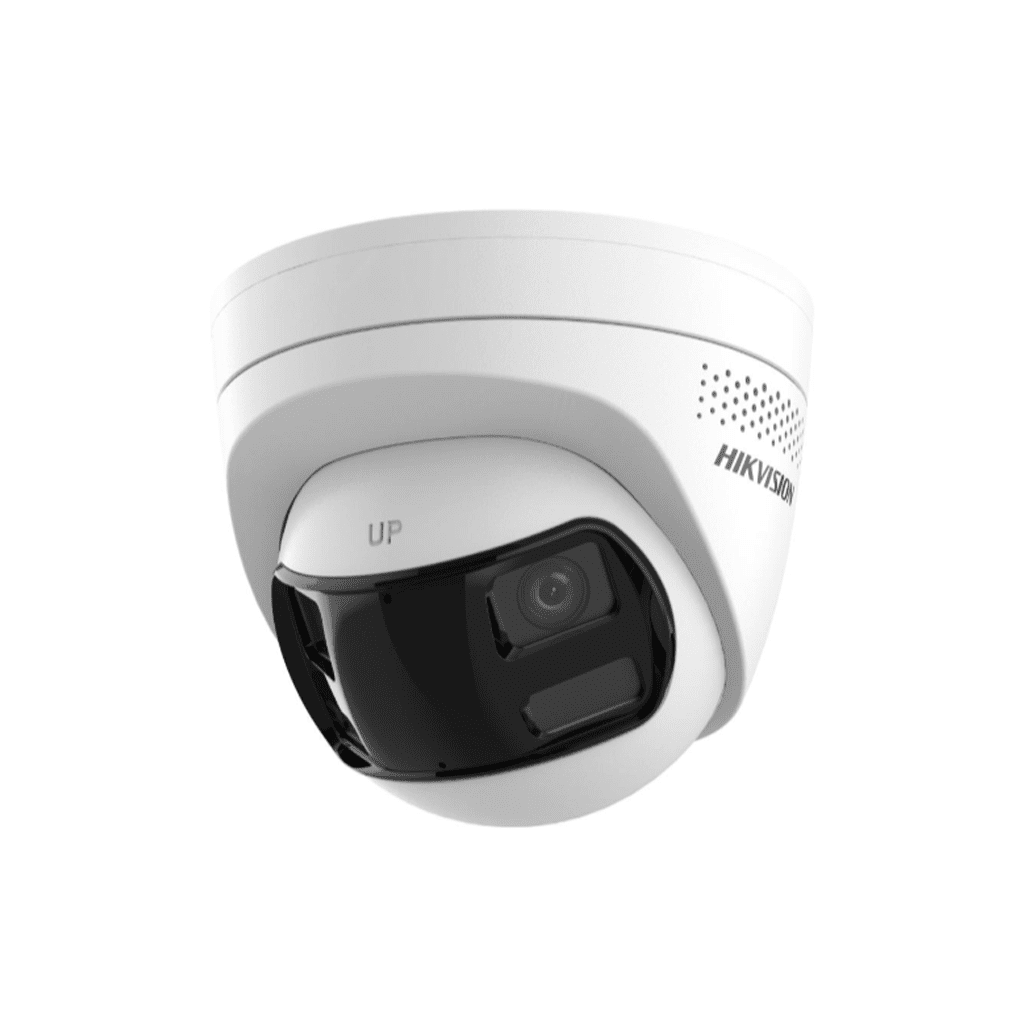

HIKVISION DS-2CD1363G2P-LIUF/S(L)(RB)
6 MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera
Features
- 180° Field of view
- High quality imaging with 6 MP resolution
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Built-in Microphone
- Active strobe light and audio alarm to warn intruders off
Specifications
| Camera | |
| Image Sensor | 1/2.5″ Progressive Scan CMOS |
| Max. Resolution | 3632 × 1632 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Image | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| General | |
| Power | 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W |
| Dimension | Ø130.1 mm × 109.1 mm (Ø5.12″ × 4.3″) |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight | Approx. 580 g (1.3 lb.) |
| With Package Weight | Approx. 760 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,anti-banding,password protection,password reset via email |
| Flashing Light | /SRB model: Red and Blue Light /SL model: White Light |
