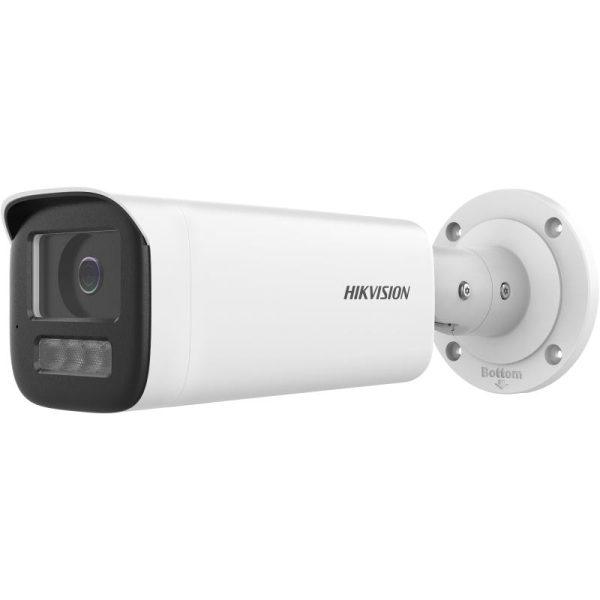

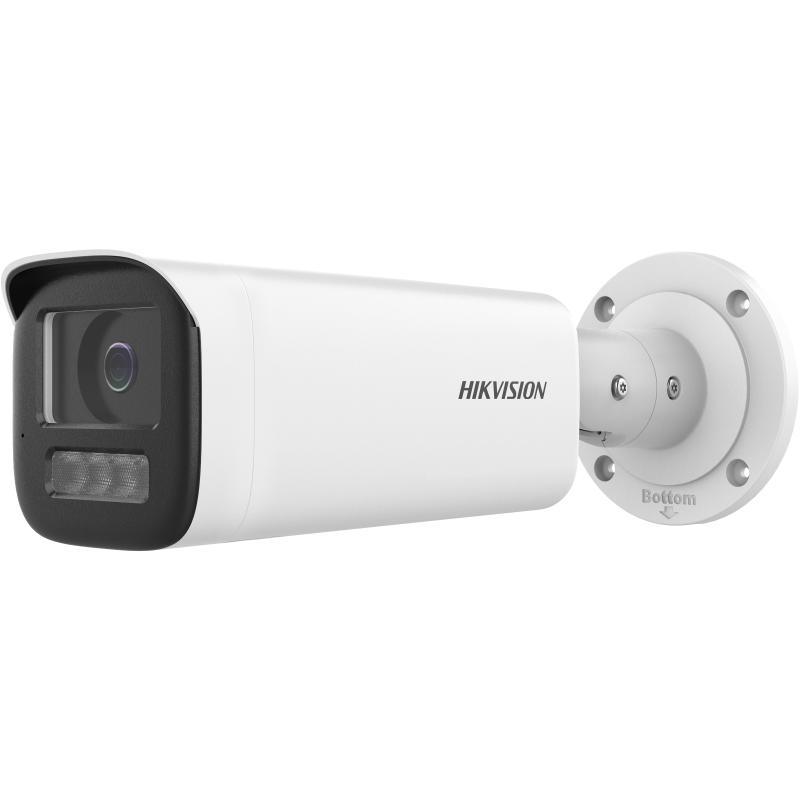

DS-2CD1B23G2-LIU(F)
2 MP Smart Hybrid Light Fixed Bullet Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/2.9″ Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121° 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 96° 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 60°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
- DORI
- DORI 2.8 mm, D: 43 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 55 m, O: 21 m, R: 11 m, I: 5 m 6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m
- Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range Up to 60 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Region of Interest (ROI) 1 fixed region for main stream
- Audio
- Audio Type Mono sound
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile T, Profile G(only -F model supports)),ISAPI,SDK
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Client iVMS-4200,Hik-Connect
- Web Browser Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Image
- Wide Dynamic Range (WDR) Digital WDR
- SNR ≥ 52 dB
- Day/Night Switch Day,Night,Auto,Schedule
- Image Enhancement BLC,HLC,3D DNR
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask 4 programmable rectangle privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone Yes,1 built-in microphone
- Reset Key -F: Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage Upload to FTP, upload to memory card(-F), notify surveillance center, send email, trigger recording(-F), trigger capture
- General
- Power LIUF model: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W LIU model: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
- Material Front cover: metal, body: plastic, bracket: metal
- Dimension 87.9 mm × 83.4 mm × 286.1 mm (3.5″ × 3.3″ × 11.3″)
- Package Dimension 386 mm × 156 mm × 155 mm (15.1″ × 6.1″ × 6.1″)
- Approx. 640 g (1.4 lb.)
- With Package Weight Approx. 1150 g (2.5 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
- Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
