描述
海康威視 DS-2CD1B27G3-LIU(F)(/SL)(/SRB) 是 2MP ColorVu 3.0 定焦槍型網絡鏡頭，配 HikAI-ISP 降噪及智能混合補光，IP67；-SL、-SRB 型號具雙向對講及警示燈。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

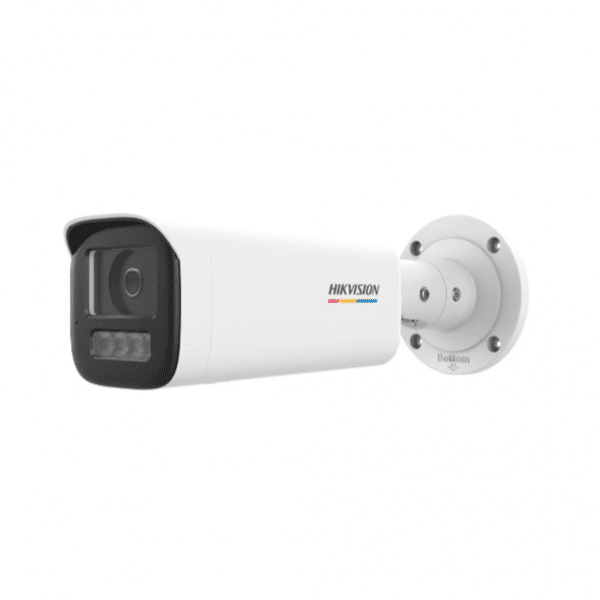

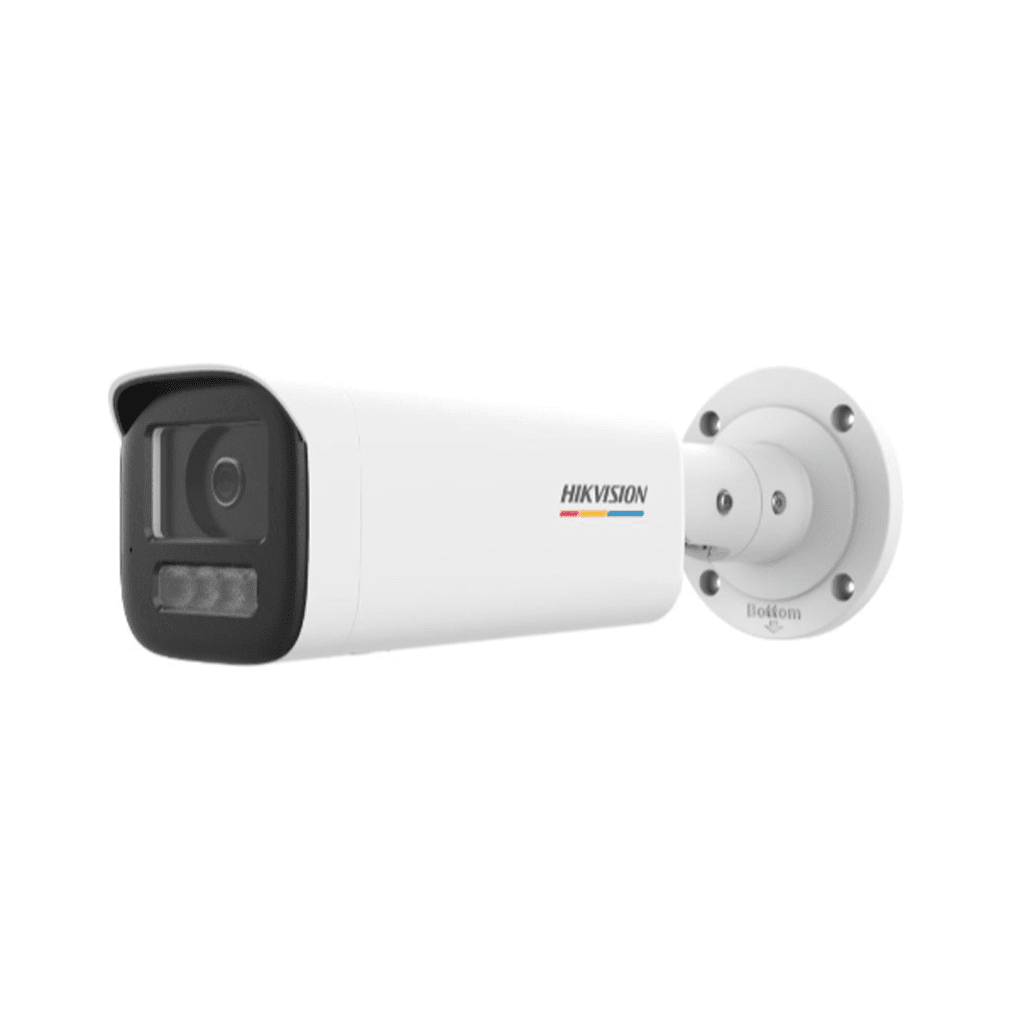

HIKVISION DS-2CD1B27G3-LIU(F)(/SL)(/SRB)
2 MP ColorVu 3.0 Fixed Bullet Network Camera
Features
- HikAI-ISP for excellent noise reduction effect
- Super clear 24/7 colorful imaging with ColorVu 3.0 technology
- Motion Detection 3.0, more accurate on person and vehicle classification
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- -SL/-SRB: Provide real-time security via built-in two-way audio and strobe light alarm
- -F: Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Image | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC |
| Privacy Mask | 4 programmable rectangular privacy masks |
| General | |
| Power | -LIU/-LIUF: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W, -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.68 A, max. 8.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.9 W |
| Material | Front cover: metal, body: plastic, bracket: metal |
| Dimension | 285.8 mm × 88.1 mm × 83.4 mm (11.25″ × 3.46″ × 3.28″) |
| Package Dimension | 386 mm × 156 mm × 155 mm (15.1″ × 6.1″ × 6.1″) |
| Weight | -LIU: Approx. 640 g (1.4 lb.) -LIUF: Approx. 665g (1.5 lb.) -SL/SRB: Approx. 690g (1.5 lb.) |
| With Package Weight | -LIU: Approx. 1140 g (2.5 lb.) -LIUF: Approx. 1180g (2.6 lb.) -SL/SRB: Approx. 1220g (2.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding |
| Flashing Light | -LIU、-LIUF：NA -LIU(F)/SL：White Light -LIU(F)/SRB：Red and Blue Light |
