描述
海康威視 DS-2CD1B67G3-LIU(F)(/SL)(/SRB) 是 6MP ColorVu 3.0 定焦槍型網絡鏡頭，配 HikAI-ISP 降噪及智能混合補光，IP67；/SL、/SRB 型號具雙向對講及警示燈。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

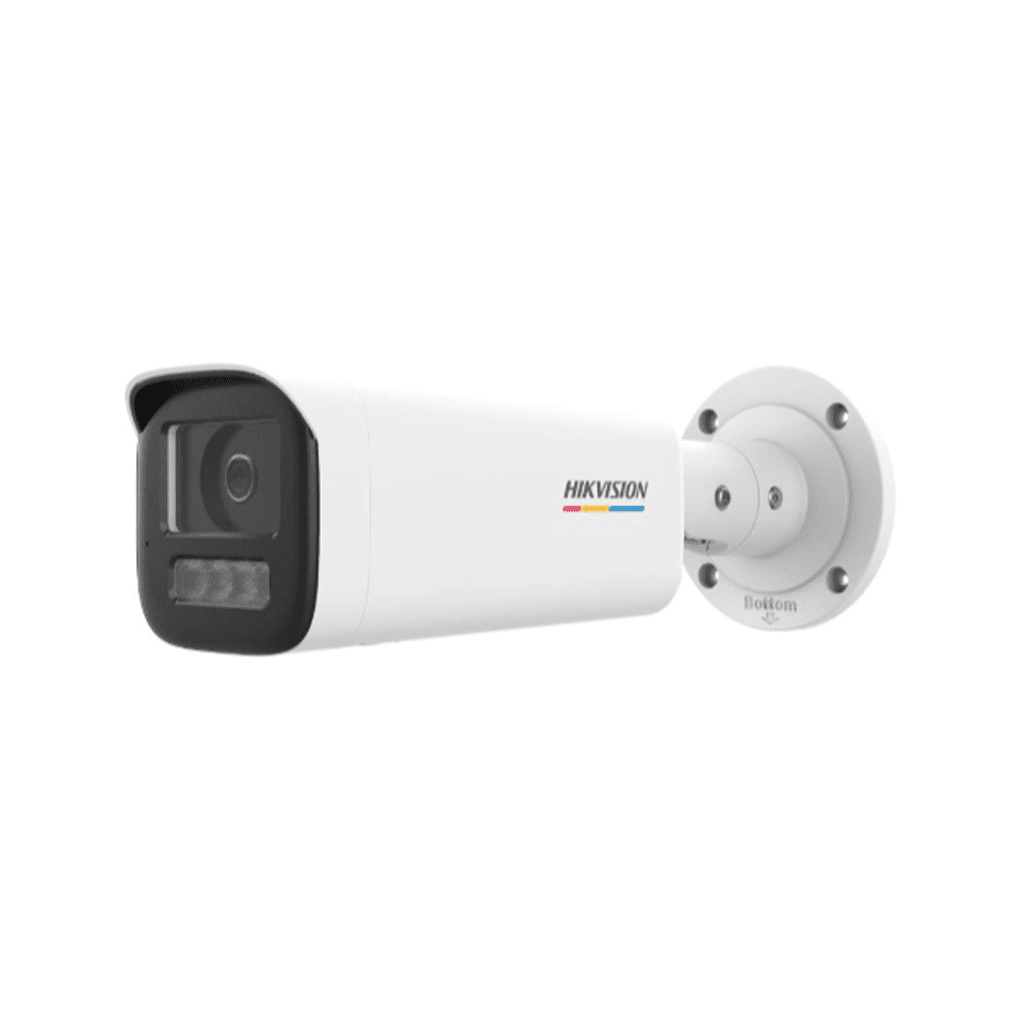

HIKVISION DS-2CD1B67G3-LIU(F)(/SL)(/SRB)
6 MP ColorVu 3.0 Fixed Bullet Network Camera
Features
- HikAI-ISP for excellent noise reduction effect
- Super clear 24/7 colorful imaging with ColorVu 3.0 technology
- Motion Detection 3.0, more accurate on person and vehicle classification
- Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
- /SL/SRB: Provide real-time security via built-in two-way audio and strobe light alarm
- -F: Support on-board storage up to 512 GB (SD card slot) (Optional)
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Image | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| General | |
| Power | -LIU/-LIUF: 12 VDC ± 25%, 0.57 A, max. 6.84 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.3 W, -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.73 A, max. 8.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.7 W |
| Material | Front cover: metal, body: plastic, bracket: plastic |
| Dimension | 285.8 mm × 88.1 mm × 83.4 mm (11.25″ × 3.46″ × 3.28″) |
| Package Dimension | 386 mm × 156 mm × 155 mm (15.1″ × 6.1″ × 6.1″) |
| Weight | -LIU(F): Approx. 665 g (1.5 lb.) -SL/SRB: Approx. 725 g (1.6 lb.) |
| With Package Weight | -LIU(F): Approx. 1174 g (2.6 lb.) -SL/SRB: Approx. 1244 g (2.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding |
| Flashing Light | -LIU, -LIUF: NA -LIU(F)/SL: White Light -LIU(F)/SRB: Red and Blue Light |
