DS-2CD1P43G2-I(UF)

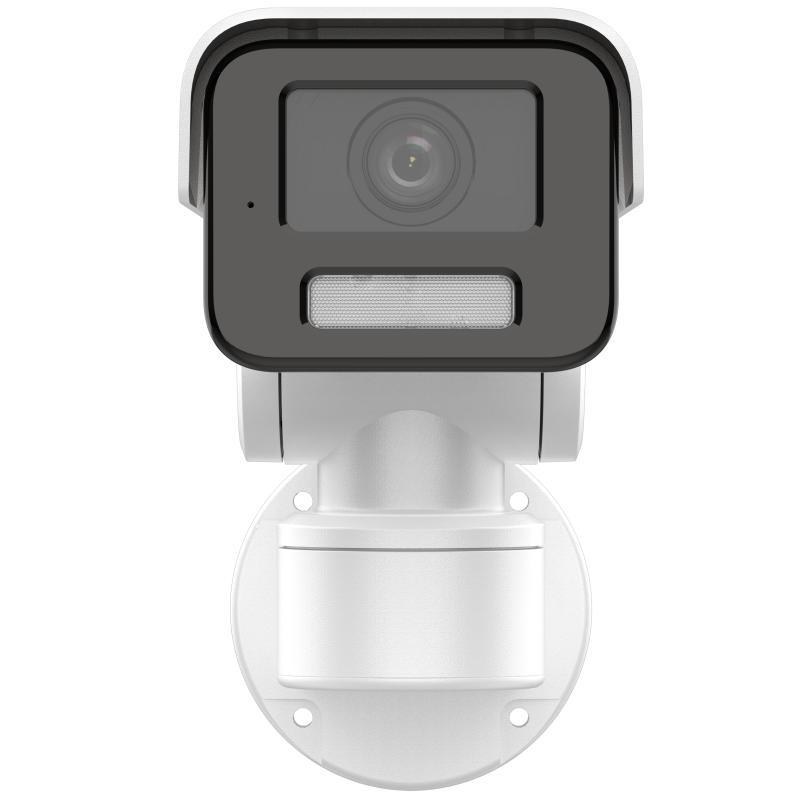

4 MP Fixed Bullet PT Network Camera

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° 4 mm, horizontal FOV 79°, vertical FOV 43°, diagonal FOV 92°
Lens Mount M12
Iris Type Fixed
Aperture Max. F2.0

DORI
DORI 2.8 mm: D: 59 m, O: 23 m, R: 11 m, I: 5 m 4 mm: D: 79 m, O: 31 m, R: 15 m, I: 7 m

Video
Main Stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Region of Interest (ROI) 1 fixed region for main stream

Audio
Audio Type -U: Mono sound
Environment Noise Filtering -U: Yes
Audio Sampling Rate -U: 8 kHz/16 kHz
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate -U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G (only -F model supports), Profile T), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users 3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse
Privacy Mask 4 regions of privacy mask

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone -U: Yes
Reset Key -F: Yes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power 12 VDC ± 25%, 1.00 A, max. 12 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.33 A to 0.21 A, max. 12.5 W
Material Front cover: metal, body: plastic, bracket: plastic
Dimension 197.1 mm × 105 mm × 225.4 mm (7.8″ × 4.1″ × 8.9″)
Package Dimension 300 mm × 266 mm × 172 mm (11.8″ × 10.4″ × 6.8″)
Approx. 900 g (2.0 lb.)
With Package Weight Approx. 1520 g (3.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-banding, heartbeat, password protection, password reset via email

Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015,FCC: 47 CFR Part 15, Subpart B
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013
