海康威視 DS-2CD1T47G3-LIU(F)/LS(L)(RB) 是 4MP ColorVu 3.0 定焦槍型網絡鏡頭，全天候彩色影像，配 HikAI-ISP 降噪及 Motion Detection 3.0 人形／車輛偵測；-LSL、-LSRB 型號另設閃燈及聲音警報，並可雙向對講。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

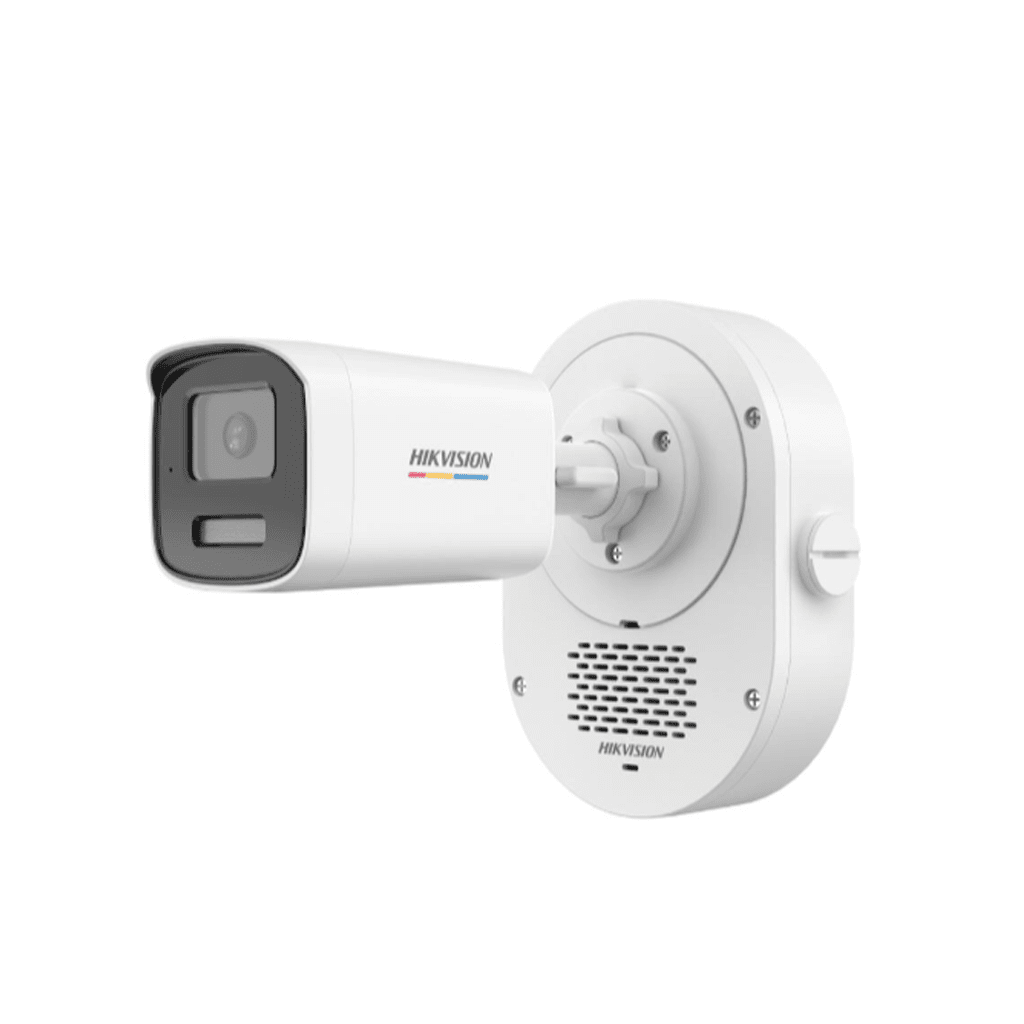

HIKVISION DS-2CD1T47G3-LIU(F)/LS(L)(RB)
4 MP ColorVu 3.0 Fixed Bullet Network Camera
Features
- SoundMax produces a louder alarm sound to deter trespassers
- HikAI-ISP for excellent noise reduction effect
- Super clear 24/7 colorful imaging with ColorVu 3.0 technology
- Motion Detection 3.0, more accurate on person and vehicle detection
- -LSL/-LSRB: Strobe Light & Audio Alarm to deter intruders
- -LSL/-LSRB: Two-Way Audio via camera and Hik-Connect
- Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
- -F: On-board storage with SD card up to 512 GB (Optional)
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360° |
| Image | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable rectangular privacy masks |
| General | |
| Power | 12 VDC ± 25%, 1.13 A, max. 13.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 14.5 W |
| Material | Front cover: Metal, body: Plastic, bracket: Metal |
| Dimension | 144.6 mm × 197 mm × 253 mm (5.69″ × 7.76″ × 9.96″) |
| Package Dimension | 245 mm × 205 mm × 167 mm (9.65″ × 8.07″ × 6.57″) |
| Weight | Approx. 430 g (0.95 lb.) |
| With Package Weight | Approx. 1190 g (2.62 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding |
| Flashing Light | -LSL: White Light-LSRB: Red and Blue Light |
