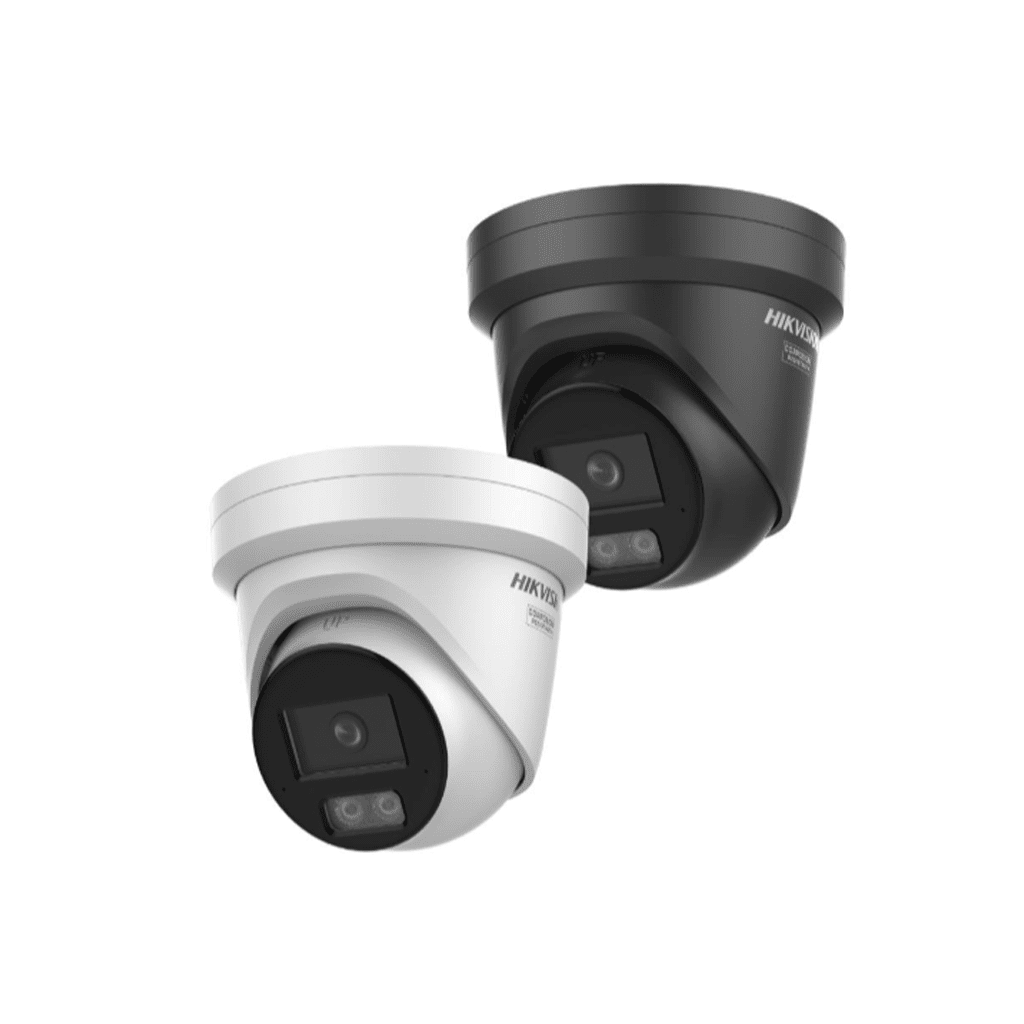

HIKVISION DS-2CD23123G2-LI(2U)Y

12MP Acusense Smart Hybrid Light Fixed Turret Network Camera

UHD: Ultra High Definition delivers lifelike immersion
Smart Hybrid Light: Integrates IR and white lights, 3 supplemental lighting modes
Person and vehicle classification based on deep learning
Crystal-clear audio with Built-in Arrayed Dual-Mic (-2U models)
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Water and dust resistant (IP67)
Anti-corrosion design, providing reliability and longevity compared to standard (NEMA 4X)

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	4608 × 2592
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Image Parameters Switch	Yes
Day/Night Switch	Day,Night,Auto,Schedule
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask	4 programmable polygon privacy masks
General
Power	12 VDC ± 25%, 0.7 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
Material	Metal
Dimension	Ø127.3 mm × 96.3 mm (Ø5.0″ × 3.8″)
Package Dimension	170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
Weight	Approx. 515 g (1.1 lb.)
With Package Weight	Approx. 755 g (1.7 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
