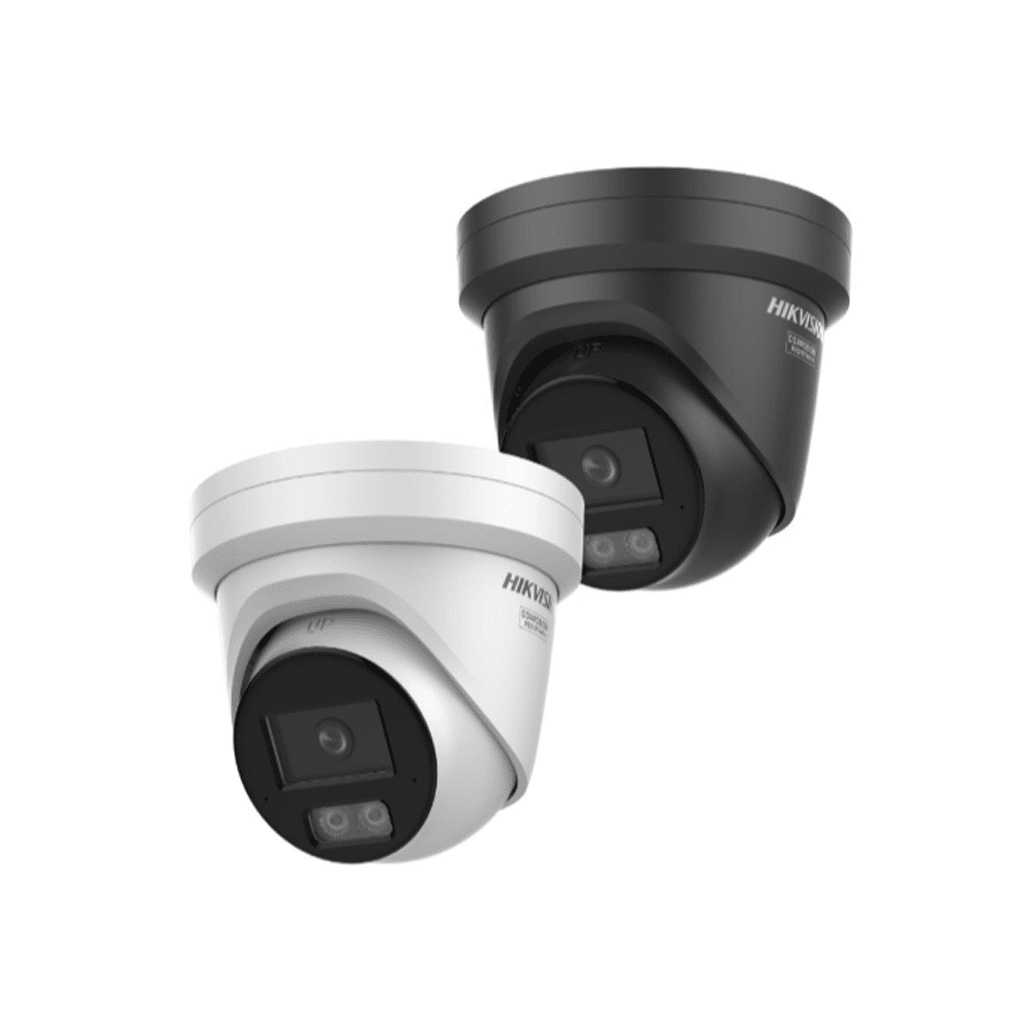

HIKVISION DS-2CD23166G3-I(2U)Y

16MP Acusense Powered by Darkfighter Fixed Turret Network Camera

UHD: Ultra High Definition delivers lifelike immersion
Excellent low-light performance via Powered by DarkFighter
Person and vehicle classification based on deep learning
Crystal-clear audio with Built-in Arrayed Dual-Mic (-2U models）
Clear imaging against strong back light due to 130 dB true WDR technology
Water and dust resistant (IP67)
Anti-corrosion design, providing reliability and longevity compared to standard (NEMA 4X)
Tamper-free & eco-friendly packaging

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	4608 × 3456
Min. Illumination	Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Image Parameters Switch	Yes
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
SNR	≥ 52 dB
Wide Dynamic Range (WDR)	130 dB
Privacy Mask	4 programmable polygon privacy masks
General
Power	12 VDC ± 25%, 0.7 A, max. 8.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
Material	Cover: Metal, main body: Metal
Dimension	Ø138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)
Package Dimension	170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
Weight	Approx. 750 g (1.7 lb.)
With Package Weight	Approx. 1140 g (2.5 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
