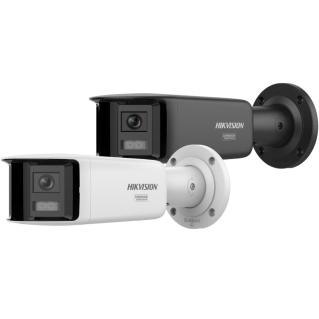

DS-2CD2T167G3P-LIS2UY/S(L)(RB)
16 MP Panoramic ColorVu Fixed Bullet Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/1.8″ Progressive Scan CMOS
- Max. Resolution 5968 × 2688
- Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time 1 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8 mm
- Focal Length & FOV 2.8 mm, horizontal FOV 182.2°, vertical FOV 71.2°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.0
- Depth of Field 2.8 mm: 2 m to ∞
- DORI
- DORI 2.8 mm: D: 80 m, O: 32 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light Type White Light,IR
- Supplement Light Range Up to 40 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 12.5 fps (5968 × 2688, 4096 × 1856) 60 Hz: 15 fps (5968 × 2688, 4096 × 1856)
- Sub-Stream 50 Hz: 12.5 fps (1200 × 536, 960 × 432) 60 Hz: 15 fps (1200 × 536, 960 × 432)
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 40 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed regions for each stream
- Audio
- Audio Type -U:Mono sound
- Audio Compression -U:G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering -U: Yes
- Network
- Protocols SNMP,SSL/TLS,IPv6,IGMP,DNS,SFTP,WebSockets,QoS,DDNS,SMTP,PPPoE,DHCP,WebSocket,FTP,NTP,HTTP,RTSP,IPv4,HTTPS,UPnP,RTP,TCP/IP,ICMP,802.1X,RTCP,UDP
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.3, host authentication (MAC address), watermark, RTP/RTSP over HTTPS, complicated password, AES128/256, Password protection, WSSE and digest authentication for Open Network Video Interface, TLS 1.2, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5,EAP-PEAP), control timeout settings, HTTPS encryption, security audit log
- Network Storage NAS (NFS, SMB/CIFS)
- Client iVMS-4200,Hik-Connect,Hik-Central
- Web Browser Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ Local service: Chrome 91+, Firefox 88+, Edge 91+
- Image
- Image Parameters Switch Yes
- Image Settings saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
- SNR ≥ 52 dB
- Wide Dynamic Range (WDR) 130 dB
- Image Stabilization No
- Privacy Mask 4 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
- Audio Built-in Microphone: -2U: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception,alarm input and output
- Smart Event Scene change detection
- Linkage notify surveillance center,trigger alarm output,trigger recording,trigger capture,audible warning,send email
- Deep Learning Function
- Face Capture No
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power 12 VDC ± 25%, 1.67 A, max. 20 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 24 W
- Material Cover: metal, main body: metal
- Dimension 118.6 mm × 78 mm × 306.5 mm (4.67″ × 3.07″ × 12.07″)
- Package Dimension 405 mm × 190 mm × 180 mm (15.94″ × 7.48″ × 7.09″)
- Approx. 1440 g (3.17 lb.)
- With Package Weight Approx. 2100 g (4.63 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function Heartbeat,flash log,password reset via email,pixel counter,anti-banding
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Flashing Light /SRB model: Red and Blue Light /SL model: White Light
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
- Anti-Corrosion Protection NEMA 4X (NEMA 250-2018)
