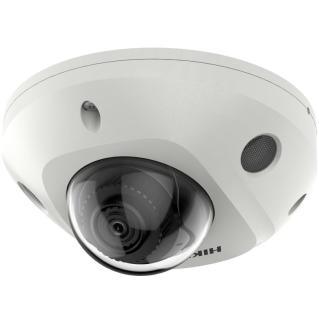

DS-2CD3523G2-IS
2 MP Acusense Fixed Mini Dome Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/2.8″ Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8, 4 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 132.4° 4 mm, horizontal FOV 91°, vertical FOV 47.8°, diagonal FOV 110.2°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
- Depth of Field 2.8 mm: 1 m to ∞ 4 mm: 1.2 m to ∞
- DORI
- DORI 2.8 mm, D: 43 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 54 m, O: 21 m, R: 10 m, I: 5 m 6 mm, D: 176 m, O: 70 m, R: 35 m, I: 17 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 25 fps ( 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
- Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Target Cropping Yes
- Bit Rate Control CBR,VBR
- Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Client iVMS-4200, Hik-Connect, Hik-Central
- Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Web Browser Plug-in required live view: IE11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Image
- Image Parameters Switch Yes
- Day/Night Switch Day, Night, Auto, Schedule
- Image Settings Rotate mode
- Wide Dynamic Range (WDR) 120 dB
- SNR ≥ 52 dB
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask 8 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in Microphone Yes, 1 built-in microphone
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Smart Event Unattended baggage detection, object removal detection, loitering detection, people gathering detection, people running detection, parking detection, video quality diagnosis
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
- Deep Learning Function
- Face Capture Yes
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 7 W
- Material Base: aluminum, cover: plastic
- Dimension Ø113.6 mm × 72.6 mm (Ø 4.5″ × 2.9″)
- Package Dimension 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
- Approx. 410 g (0.9 lb.)
- With Package Weight Approx. 645 g (1.4 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
- Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
