DS-2CD3H23G3-LIZSUY

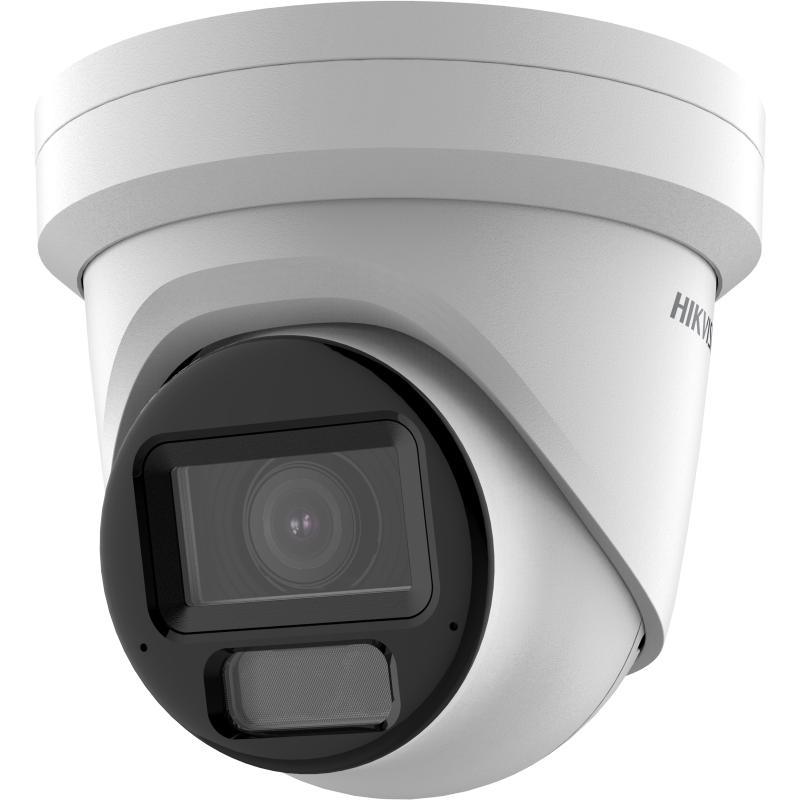

2 MP Acusense Smart Hybrid Light Motorized Varifocal Turret Network Camera

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

Lens
Lens TypeVarifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV2.7 to 13.5 mm, horizontal FOV 111.5° to 33.4°, vertical FOV 58.4° to 18.8°, diagonal FOV 134.3° to 38.3°
Lens MountØ14
Iris TypeAuto-iris
ApertureF1.6

DORI
DORI2.7 to 13.5 mm: O: 57.9 m to 175.9 m, O: 29 m to 87.9 m, D: 14.5 m to 44 m, P: 9.3 m to 28.1 m, C: 4.6 m to 14.1 m, V: 2.3 m to 7 m, S: 0.8 m to 2.3 m

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 30 fps (768 × 432, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, *Third stream and fourth stream are supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Bit Rate ControlCBR,VBR
Region of Interest (ROI)5 fixed regions for main stream and sub-stream
Target CroppingNO

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsHTTP,PPPoE,SFTP,HTTPS,SSL/TLS,UPnP,RTCP,WebSockets,QoS,TCP/IP,IGMP,RTP,DHCP,ICMP,FTP,WebSocket,UDP,IPv4,DNS,NTP,IPv6,802.1X,RTSP,DDNS,SNMP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
User/HostUp to 32 users 3 user levels: administrator, operator, and user
ClientiVMS-4200,Hik-Connect,Hik-Central
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web BrowserPlug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+, Local service: Chrome 91+, Firefox 88+, Edge 91+

Image Parameters SwitchYes
Day/Night SwitchDay,Night,Auto,Schedule
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Wide Dynamic Range (WDR)130 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy Mask8 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes
AudioBuilt-in Microphone: Dual-Mic Array 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Event
Basic Event Motion detection (support alarm triggering by specified target types (human, vehicle and animal)),video tampering alarm,exception
Smart EventUnattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection,video quality diagnosis
Linkagenotify surveillance center,send email,trigger recording,trigger capture

Deep Learning Function
Face CaptureYes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human, vehicle and animal)

General
Power12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11 W
MaterialMetal
DimensionØ138.6 mm × 123 mm (Ø5.5″ × 4.8″)
Package Dimension170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
Approx. 865 g (1.9 lb.)
With Package WeightApprox. 1100 g (2.4 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
