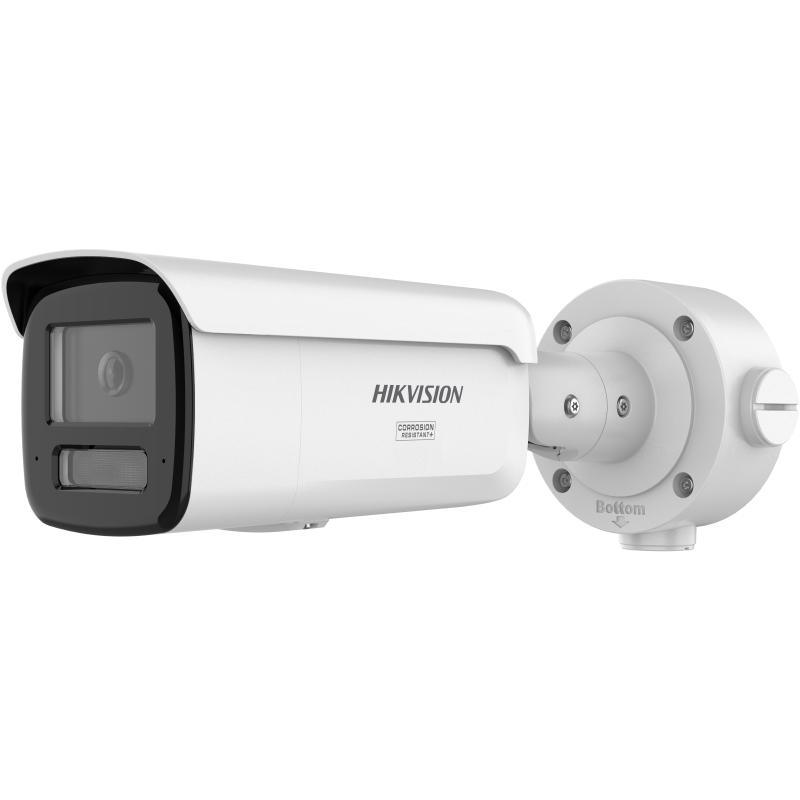

DS-2CD3T23G3-2LISUY/4LISUY
2 MP Acusense Smart Hybrid Light Fixed Bullet Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/2.8″ Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.001 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 132.4° 4 mm, horizontal FOV 91°, vertical FOV 47.8°, diagonal FOV 110.2° 6 mm, horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.6
- Depth of Field 2.8 mm: 1 m to ∞ 4 mm: 1.1 m to ∞ 6 mm: 2.8 m to ∞
- DORI
- DORI 2.8 mm, O: 52.8 m, O: 26.4 m, D: 13.2 m, P: 8.4m , C: 4.2m, V: 2.1m, S: 0.7m 4 mm, O: 66.9 m, O: 33.4 m, D: 16.7 m, P: 10.7m , C: 5.4m, V: 2.7m, S: 0.9m 6 mm, O: 110.3 m, O: 55.2 m, D: 27.6 m, P: 17.7m , C: 8.8m, V: 4.4m, S: 1.5m
- Illuminator
- Supplement Light Range -2LISU model: up to 60 m -4LISU model: up to 80 m
- Supplement Light Type IR,White Light
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 30 fps (768 × 432, 640 × 360)
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
- Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, *Third stream and fourth stream are supported under certain settings.
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile, Main Profile, High Profile
- H.265 Type Main Profile
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Bit Rate Control CBR,VBR
- Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
- Target Cropping NO
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols HTTP,PPPoE,SFTP,HTTPS,SSL/TLS,UPnP,RTCP,WebSockets,QoS,TCP/IP,IGMP,RTP,DHCP,ICMP,FTP,WebSocket,UDP,IPv4,DNS,NTP,IPv6,802.1X,RTSP,DDNS,SNMP
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Client iVMS-4200, Hik-Connect, Hik-Central
- Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Web Browser Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+, Local service: Chrome 91+, Firefox 88+, Edge 91+
- Image
- Image Parameters Switch Yes
- Day/Night Switch Day, Night, Auto, Schedule
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Wide Dynamic Range (WDR) 130 dB
- SNR ≥ 52 dB
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask 8 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Alarm 1 input, 1 output (max. 24 VAC/VDC, 1A)
- Reset Key Yes
- Audio Built-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human, vehicle and animal)),video tampering alarm,exception
- Smart Event Unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection,video quality diagnosis
- Linkage notify surveillance center,send email,trigger recording,trigger capture
- Deep Learning Function
- Face Capture Yes
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human, vehicle and animal)
- General
- Power -2LI: 12 VDC ± 25%, 0.75 A, max. 9.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 10.5 W -4LI: 12 VDC ± 25%, 0.95 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max.12.5 W
- Material Metal
- Dimension 88.7 mm × 91.2 mm × 323.2mm (3.5″ × 3.6″× 12.7″)
- Package Dimension 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
- Approx. 1200 g (2.65 lb.)
- With Package Weight Approx. 1770 g (3.9 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
- Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
