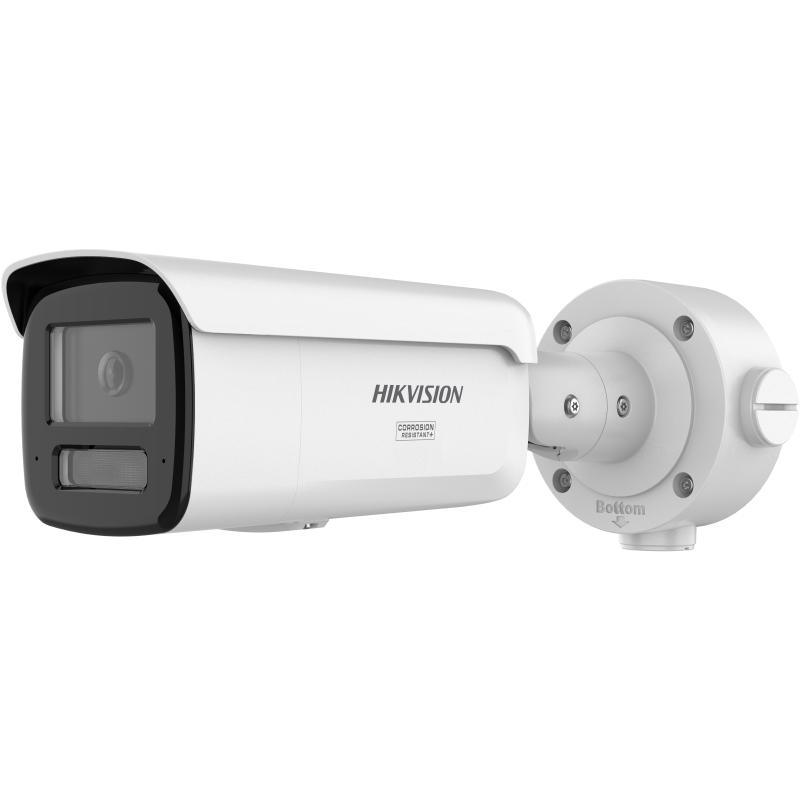

DS-2CD3T86G3-2ISU/4ISU(Y)
8 MP AcuSense Fixed Bullet Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/1.8″ Progressive Scan CMOS
- Max. Resolution 3840 × 2160
- Min. Illumination Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 4 and 6 mm optional
- Focal Length & FOV 4 mm, horizontal FOV 90.2°, vertical FOV 48.8°, diagonal FOV 106.2° 6 mm, horizontal FOV 57°, vertical FOV 32.3°, diagonal FOV 65.1°
- Lens Mount M16
- Iris Type Fixed
- Aperture F1.2
- Depth of Field 4 mm: 3.1 m to ∞ 6 mm: 6.8 m to ∞
- DORI
- DORI 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m 6 mm: D: 152 m, O: 60 m, R: 30 m, I: 15 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 90 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- HEOP
- Open Resources NA
- Computing Power NA
- Open Capability NA
- Deep Learning Structure NA
- Programming Language NA
- Video
- Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (1280 × 720, 768 × 432, 640 × 360) 60 Hz: 30 fps (1280 × 720, 768 × 432, 640 × 360)
- Third Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Fourth Stream 50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG,
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
- e-PTZ Support Patrol and Auto Tracking settings
- AI Encoding Yes
- Audio
- Audio Type Mono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Simultaneous Live View Up to 6 channels
- API ISAPI,SDK,ISUP,ONVIF (Profile S, Profile T, Profile G, Profile M)
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- Client iVMS-4200,Hik-Connect,Hik-Central
- Web Browser Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ Local service: Chrome 91+, Firefox 88+, Edge 91+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
- SNR ≥ 52 dB
- Wide Dynamic Range (WDR) 130 dB
- Image Stabilization EIS
- Privacy Mask 8 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key Yes
- Power Output 12 VDC, max. 100 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle and animal)),video tampering alarm,exception
- Smart Event Scene change detection, audio exception detection, defocus detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning
- Deep Learning Function
- Face Capture Yes
- People Counting Yes
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle and animal),people gathering, fast moving, parking, unattended baggage, object removal, combined event
- General
- Power 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Material Front cover: Metal, body: Metal, bracket: Metal
- Dimension 323.2 mm × 91.2 mm × 88.7 mm (12.72″ × 3.59″ × 3.49″)
- Package Dimension 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
- Approx. 1235 g (2.7 lb.)
- With Package Weight Approx. 1780 g (3.9 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
- Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
