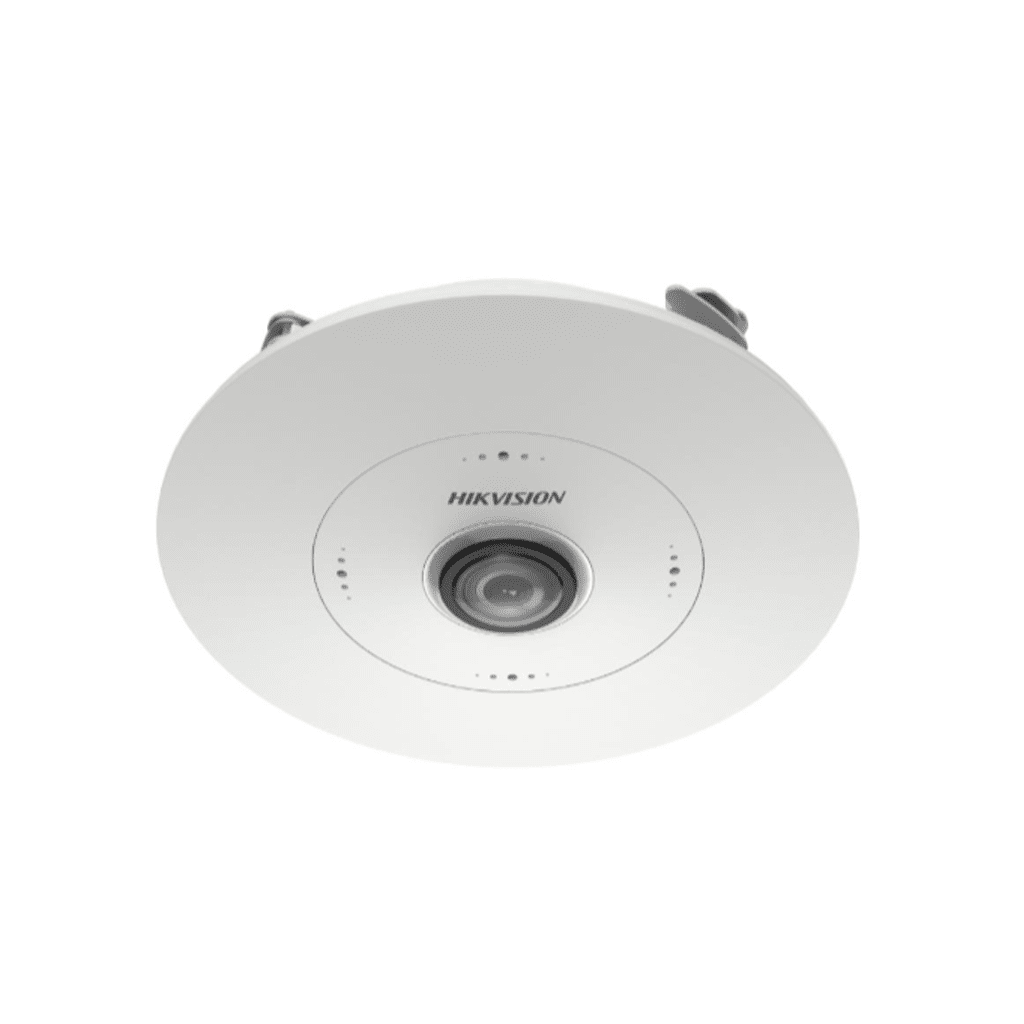

HIKVISION DS-2CD63C5G1-S/RC
12 MP DeepinView Fisheye Network Camera
Features
- Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
- Each image is clear and detailed
- Panomorph lens RPL: 89VVT
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3504 × 3504 |
| Min. Illumination | Color: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON) |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| General | |
| Power | 12 VDC ± 20%, 0.6 A, max. 7 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 8 W |
| Material | Metal |
| Dimension | Ø165.0 mm × 48.9 mm (Ø6.49″ × 1.93″) |
| Package Dimension | 272 mm × 215 mm × 105 mm (10.7″ × 8.5″ × 4.1″) |
| Weight | Approx. 470 g (1.04 lb.) |
| With Package Weight | Approx. 884 g (1.95 lb.) |
| Storage Conditions | -10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding |
| Cable Length | 0.31 m (1.02 ft.) |
