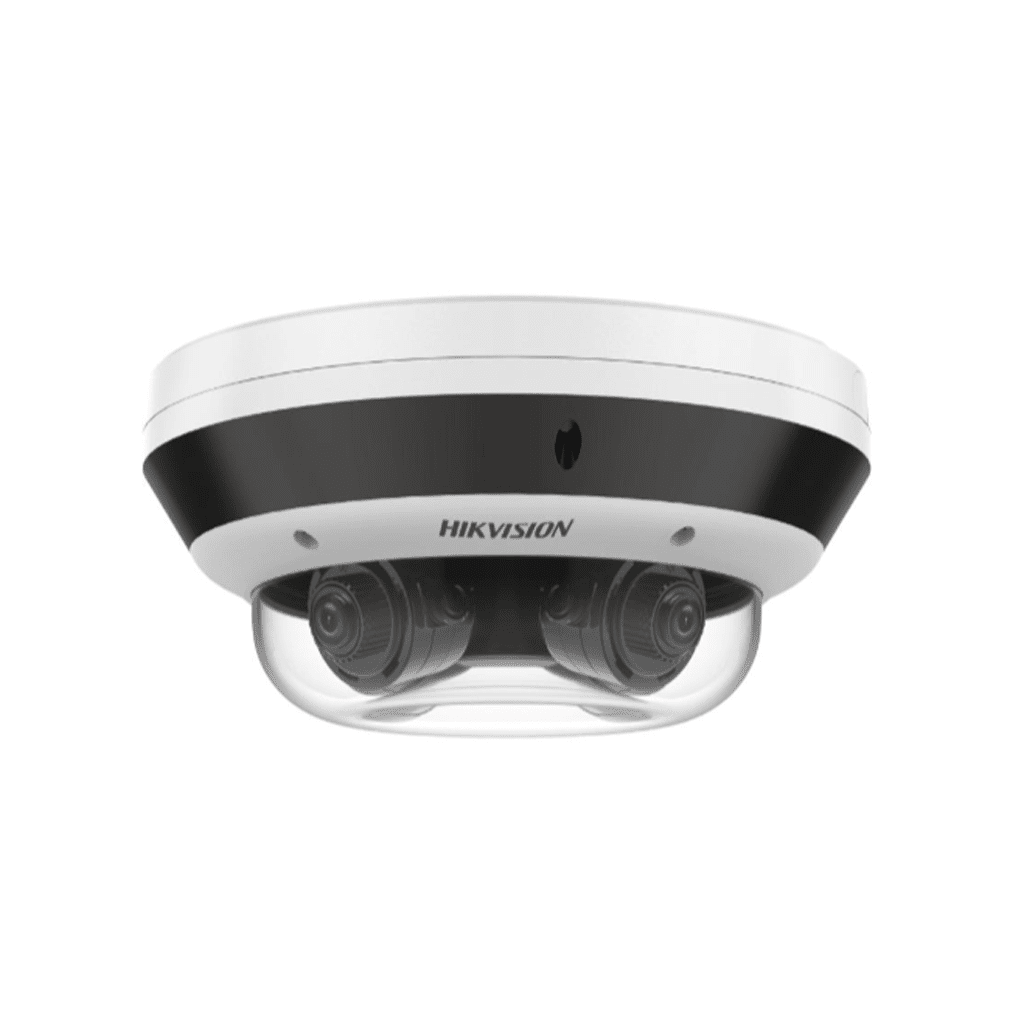

HIKVISION DS-2CD6D44G1-IZS
4-Directional Multisensor Network Camera
Features
- 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
- Each lens up to 4 MP, capturing clear images, and more details can be displayed on video wall
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- 3D DNR technology delivers clean and sharp images
- Audio and alarm interface available
Specifications
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -60° to 60°,tilt: 10° to 90°,rotate: 0° to 350° |
| Image | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC,HLC,3D DNR,Defog |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| General | |
| Power | 12 VDC ± 20%, 1.2 A, max. 14.4 W, 24 VAC ± 20%, 0.92 A, max. 14.8 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.33 A to 0.24A, max. 14 W |
| Dimension | Ø250 mm × 114.9 mm (Ø9.8″ × 4.5″) |
| Package Dimension | 336 mm × 261 mm × 293 mm (13.2″ × 10.3″ × 11.5″) |
| Weight | Approx. 2.2 kg (4.9 lb.) |
| With Package Weight | Approx. 3.9 kg (8.6 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | flash log,password protection,one-key reset |
