DS-2DE2C400SCG-E

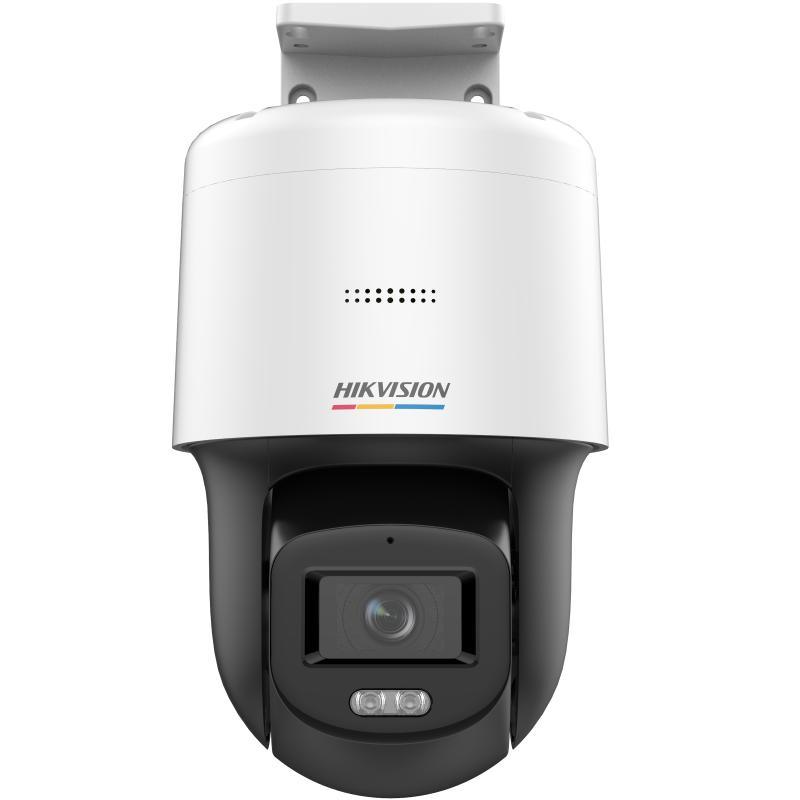

4 MP Fixed Outdoor ColorVu PT Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light
- Lens
- Focal Length2.8 mm/4 mm
- FOV2.8 mm, horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9° 4 mm, horizontal FOV 88.7°, vertical FOV 44.7°, diagonal FOV 107.5°
- ApertureF1.0
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeWhite Light Distance: up to 30 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)0° to 340°
- Movement Range (Tilt)-5° to 105°
- Pan SpeedPan speed: configurable from 4° to 21°/s
- Tilt SpeedTilt speed: configurable from 4° to 19°/s
- Video
- Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video CompressionH.265, H.264, MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile, Main Profile, High Profile
- H.265 TypeMain Profile
- Audio
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
- APIOpen Network Video Interface, ISAPI, SDK
- Image
- Image SettingsSaturation, brightness, contrast, sharpness
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Built-in MicrophoneYes
- Built-in SpeakerYes
- ResetYes
- Event
- Basic EventMotion detection, video tampering alarm, exception
- LinkageUpload to FTP, notify surveillance center, send email, upload to memory card
- General
- Power12 V, 0.6 A, max 7.2 W, PoE: IEEE 802.3af, 36 V to 57 V, 0.3 A, max 10 W
- DimensionCamera dimension: 162 mm × 120 mm × 234.2 mm (6.4″ × 4.7″ × 9.2″) Package dimension: 205 mm × 167 mm × 289 mm (8.1″ × 6.6″ × 11.4″)
- Camera weight: 780 g (1.7 lb.) With package weight: 1280 g (2.8 lb.)
- Operating ConditionWith supplement light on: -30 ℃ to 40 ℃. Humidity 95% or less (non-condensing) With supplement light off: -30 ℃ to 50 ℃. Humidity 95% or less (non-condensing)
- General FunctionMirror, password protection, watermark
- Approval
- EMCFCC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; IC: ICES-003: Issue 7
- ProtectionIP66: IEC 60529-2013
