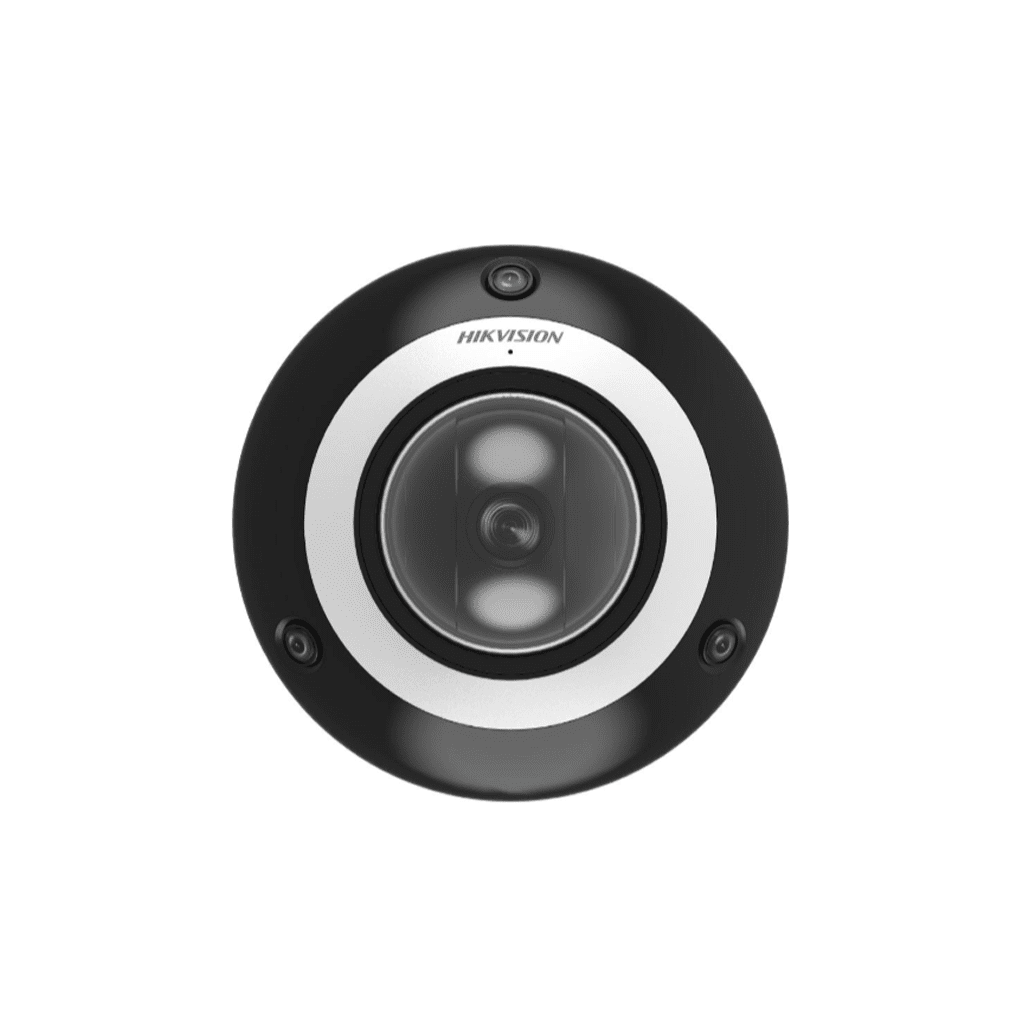

HIKVISION DS-2DP3D404IWG1-E/36
DP3A Mini PanoVu
Features
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 4× optical zoom and 16× digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Supports 12V DC
- Support regional population statistics function, which can enable regional population statistics for panoramic 1 stream + detail 1 stream
Specifications
| Camera | |
| Image Sensor | [Panoramic channel] 1/2.8″ Progressive Scan CMOS, [PTZ channel] 1/3″ Progressive Scan CMOS |
| Min. Illumination | [Panoramic channel] Color: 0.03 Lux @ (F2.3, AGC ON), B/W: 0.01 Lux @ (F2.3, AGC ON), 0 Lux with IR, [PTZ channel] Color: 0.02 Lux @ (F1.82, AGC ON), B/W: 0.01 Lux @ (F1.82, AGC ON), 0 lux with IR |
| Shutter Speed | 1/30 s to 1/30,000 s |
| Slow Shutter | yes |
| Day & Night | ICR |
| Zoom | [PTZ channel] 4 × optical, 16 × digital |
| Max. Resolution | [Panoramic channel] 1920 × 1080, [PTZ channel] 2560 × 1440 |
| Image | |
| Image Settings | sharpness, saturation, brightness, contrast |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Day/Night Switch | Day,night,auto,schedule |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | [Panoramic channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks |
| Regional Focus | [Panoramic channel] No, [PTZ channel] Yes |
| Regional Exposure | Yes |
| Image Parameters Switch | Yes |
| General | |
| General Function | mirror,watermark,IP address filter,password protection |
| Power | DC 12V| 2A ，PoE(802.3at) 42.5-57V| 0.6A |
| Operating Condition | -10 °C to 50 °C (14 °F to 122 °F). Humidity 90% or less (non-condensing) |
| Material | PC |
| Dimension | Ø183.2 mm × 128.6 mm (Ø7.2″ × 5.2″) |
| Weight | Approx. 0.9 kg (1.98 lb.) |
