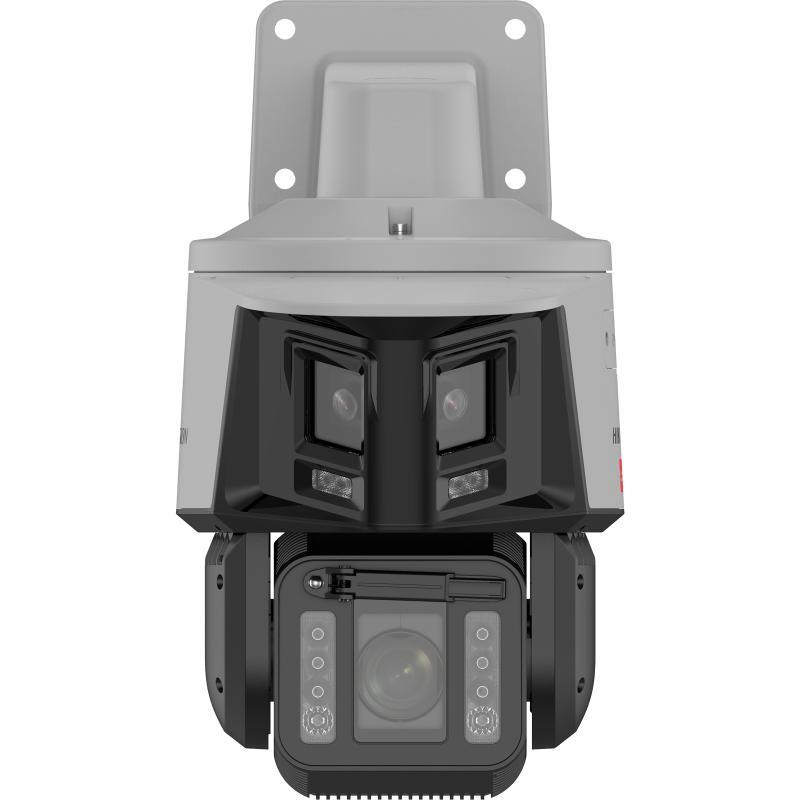

DS-2ST5C425MWG-E(W)/26(PA)
Polymer 4MP 25x Anti-corrosion TandemVu
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor [Bullet channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
- Min. Illumination [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with light
- Shutter Speed 1 s to 1/30000 s
- Slow Shutter Yes
- Day & Night [Panoramic channel] Color, [PTZ channel] IR cut filter
- Zoom [PTZ channel] 25 × optical, 16 × digital
- Max. Resolution [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520
- Lens
- FOV [Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 57° to 2.9°, vertical field of view: 33° to 1.6°, diagonal field of view: 65° to 3.3°
- Focus Auto,semi-auto,manual
- Zoom Speed [Panoramic channel] No, [PTZ channel] approx. 3.6 s
- Focal Length [Panoramic channel] 2.8 mm, [PTZ channel] 4.8 to 120 mm
- Aperture [Panoramic channel] F1.0, [PTZ channel] F1.6
- Illuminator
- Supplement Light Type Hybrid(IR + White Light)
- Supplement Light Range [Panoramic channel] White Light Distance: up to 30 m, [PTZ channel] IR Distance: up to 150 m
- Smart Supplement Light Yes
- PTZ
- Movement Range (Pan) 360° endless
- Movement Range (Tilt) [Panoramic channel] 12° to 24°, [PTZ channel] -10° to 90°
- Pan Speed [PTZ channel] pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
- Tilt Speed [PTZ channel] tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s,[Panoramic channel] tilt speed configurable
- Proportional Pan [Panoramic channel] No, [PTZ channel] Yes
- Presets 300
- Patrol Scan 8 patrols, up to 32 presets for each patrol
- Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
- Power-off Memory Yes
- Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- 3D Positioning Yes
- PTZ Status Display Yes
- Preset Freezing Yes
- Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Video
- Main Stream [Panoramic channel]： 50 Hz: 25 fps (3680 × 1656, 3632 × 1632) 60 Hz: 30 fps (3680 × 1656, 3632 × 1632) [PTZ channel]： 50 Hz：25 fps (2688 × 1520, 2560 × 1440，1920 × 1080，1280 × 960，1280 × 720) 60 Hz：30 fps (2688 × 1520, 2560 × 1440，1920 × 1080，1280 × 960，1280 × 720)
- Sub-Stream [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240), [Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline profile,Main profile,High profile
- H.265 Type Main profile
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 8 fixed regions for each stream
- Audio
- Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
- Audio Bit Rate 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.722.1),64 Kbps (G.711),16 Kbps (G.726)
- Audio Sampling Rate 8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise Filtering Yes
- Network
- API ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP
- Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- Protocols IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
- Simultaneous Live View Up to 20 channels
- User/Host Up to 32 users. 3 user levels: administrator, operator, and user
- Security Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark, TPM 2.0 (FIPS 140-2 level 2)
- Client iVMS-4200,HikCentral Pro,Hik-Connect
- Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Wide Dynamic Range (WDR) [Bullet channel] 120 dB, [PTZ channel] 140 dB
- Day/Night Switch Day,night,auto,schedule
- Image Enhancement HLC,3D DNR
- Privacy Mask [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Defog Digital defog
- Image Stabilization EIS (Built-in gyroscope to improve EIS performance)
- Regional Exposure Yes
- Regional Focus [Panoramic channel] No, [PTZ channel] Yes
- Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters Switch Yes
- SNR ≥ 52 dB
- Supplement Detection
- Satellite Positioning No
- Gyroscope Yes
- Compass No
- Interface
- On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
- Built-in Microphone 1 built-in microphone
- Built-in Speaker 1 built-in speaker
- Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Alarm 2 input(s), 1 output(s)
- Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω
- RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Yes
- Event
- Basic Event exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),audio exception detection,vandal-proof alam,alarm input,[PTZ channel] motion detection, video tampering alarm
- Smart Event Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection
- Linkage [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Multi-Target-Type Detection [Panoramic channel]: no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
- Road Traffic and Vehicle Detection [PTZ channel]: Smart functions: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode [Panoramic channel]: no
- People Density [PTZ channel]: no, [Panoramic channel]: yes,Supports detecting the level of people density in the configured area
- Perimeter Protection Line crossing detection, region entrance detection, intrusion detection, region exiting detection
- Linkage and Tracking
- Smart Tracking [PTZ channel] Manual tracking, auto-tracking 3.0
- Smart Linkage tracking takeover, linked tracking capture
- General
- Power 12VDC± 15%, max. 60 W (Max. 40 W, including max. 7.2 W for light and max. 16 W for heater) PoE 802.3bt, type3, class6, max. 60W (Max. 40 W, including max. 7.2 W for light and max. 16 W for heater)
- Material PA*+50% glass fiber
- Wiper Yes
- General Function mirror,password protection
- Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
- Demist Yes
- Dimension Ø218 mm × 389 mm (Ø8.58″ × 15.31″)
- Approx. 5.4 kg (11.9 lb.)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
- Safety CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
- Environment CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
- Protection IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
- Anti-Corrosion Protection NEMA 4X (NEMA 250-2018),C5M
