描述

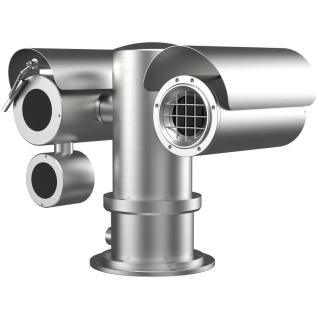

HIKVISION DS-2TD6567T-25H4LX/W Explosion-Proof Thermography Positioning System 是海康威視熱成像雲台或雙光譜定位系統。香港防盜為安裝商及經銷商。承重、電源及預置位要現場核；規格以下方原廠資料為準。
DS-2TD6567T-25H4LX/W
Explosion-Proof Thermography Positioning System
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution640 x 512
- Pixel Pitch17 μm
- Spectral Range8 μm to 14 μm
- NETD ≤ 35 mK (@25° C,F# = 1.0)
- Focal Length25 mm
- Focus ModeSemi-auto & Manual
- IFOV0.68 mrad
- ApertureF1.0
- Field of View24.9° × 20° (H × V)
- Min. Focusing Distance1.5 m
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/1.8” Progressive Scan CMOS
- Resolution2688 × 1520, 4MP
- Min. IlluminationColor: 0.005 Lux @ (F1.3, AGC ON), B/W: 0.001 Lux @ (F1.3, AGC ON)
- Field of View56.6° × 33.7° (H × V) to 1.8° × 1.0° (H × V)
- Focal Length6~240mm,40x
- Aperture (Range)F1.3-F4.6
- Focus ModeSemi-auto, manual
- Digital Zoom×2, ×4, ×8, ×16
- Shutter Speed1 s to 1/100,000 s
- Day & Night ModeIR Cut Filter
- WDR120 dB
- Optical DefogYes
- Image Effect
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip)
- Pan SpeedConfigurable, From 0.01°/s to 40°/s
- Tilt SpeedConfigurable, From 0.01°/s to 40°/s
- Proportional ZoomYes
- Presets300
- Patrol Scan8; Up to 32 presets per patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Illuminator
- IR DistanceUp to 200m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.
- Temperature Measurement3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range-20 °C to 550 °C (-4 °F to 1022 °F)
- Temperature AccuracyMax (±2°C, ±2%)
- Fire DetectionDynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.
- Video and Audio
- Main StreamOptical channel 50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)
- Sub-streamOptical channel 50 Hz: 25fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 50 fps (704 × 576, 640 × 512, 384 × 288)
- Video CompressionMain stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SSH
- Network StorageMicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users. 3 levels: administrator, operator, user
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input7-ch inputs (0 to 5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage
- Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
- Audio OutputLinear Level; Impedance: 600Ω
- Communication Interface1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface
- Analog Output1.0 V [p-p]/75 Ω, BNC
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power SupplyAC 100-240V
- Power ConsumptionAC 100-240V: max. 0.6A, 75 W
- Working Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
- WiperYes
- Protection LevelIP68 Standard ,IK10-Rated Housing TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions541.3 mm × 441 mm × 330 mm (21.31″ × 17.36″ × 12.99″)
- Approx. 40 kg (88.18 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans175 m
- VCA Range for Vehicles525 m
- Approval
- EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
- SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017;
- Explosion-Proof ProtectionATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68
