描述
HIKVISION DS-2TXS2628-7P/QA/GLT/CH36S80 Solar-powered Thermal Camera Kit 是海康威視熱成像網絡鏡頭，用於周界、廠區或車場。香港防盜為安裝商及經銷商。須現場測試機位、補光同網絡；規格以下方原廠資料為準。

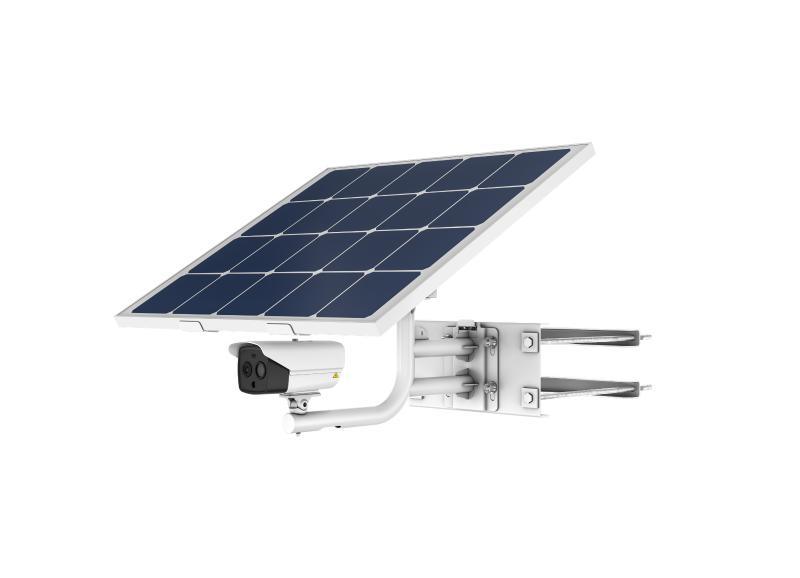

DS-2TXS2628-7P/QA/GLT/CH36S80
Solar-powered Thermal Camera Kit
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution256 x 192
- Pixel Pitch12 μm
- NETD ≤ 40 mK (@25° C,F# = 1.0)
- Focal Length6.9 mm
- IFOV1.74 mrad
- Aperture F1.0
- Field of View24.9° × 18.7° (H × V)
- Min. Focusing Distance1 m
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/2.7″ Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Field of View 53.0°(H) x28.0°(V)
- Focal Length6.4 mm
- Shutter Speed1 s to 1/100,000 s
- White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Day & Night Mode IR Cut Filter with Auto Switch
- WDR120 dB
- Image Effect
- Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
- Target Coloration Yes. Supported in white hot and black hot mode
- Illuminator
- IR Distance Up to 30 m
- IR Intensity and Angle Automatically adjusted
- Audible and Visual Alarm
- White Light Range Up to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- Audio alarm Yes, for three types of audible alarm (VCA and Temperature Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
- Smart Function
- VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy ± 8°C (± 14.4°F)
- Video and Audio
- Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
- Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
- Network StorageMicroSD/SDHC/SDXC card (32G inside) (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- API ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- Client iVMS-4200, Hik-Connect
- Mobile Communication
- SIM Card TypeMicroSIM
- FrequencyLTE FDD: B 1/3/5/7/8/20/28 LTE TDD: B 38/40/41 WCDMA: B 1/5/8
- StandardLTE FDD/LTE TDD/WCDMA
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output 2, alarm output (alarm response actions configurable)
- Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
- Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
- Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
- Power ConsumptionThermal only mode power consumption: 2.28W The average power consumption of 24 hours: 2.51W The max. power consumption: 6.24W (IR light on) standby power consumption：0.39W
- Working Temperature/HumidityTemperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
- Protection LevelIP67 Standard ,IK10-rated housing TVS 4000V lightning protection, surge protection, voltage transient protection
- Dimensions 208.9 mm × 106 mm × 105.2 mm (8.22″ × 4.17″ × 4.14″)
- Adjustment RangeBullet camera: Tilt: -10 ° to +45°, Pan: -180 ° to +180° Photovoltaic panel: Tilt: 10 ° or 30°
- Mount Pole Mount
- With Package Weight33.09kg(72.95lb)
- Storage Conditions Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
- Startup and Operating Conditions Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
- Battery
- Battery TypeLithium
- Battery Voltage10.8 V
- Battery Capacity360 Wh (90 Wh for each battery)
- Operating TemperatureCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
- Battery LifeMore than 500 cycles
- Battery WeightApprox. 2.74 kg (6.0 lb.)
- Max. Output Voltage12.6 V
- Approval
- ProtectionCamera: IP67 (IEC 60529-2013),IK10-rated housing TVS 4000V lightning protection, surge protection, voltage transient protection Wind resistance 12 level
