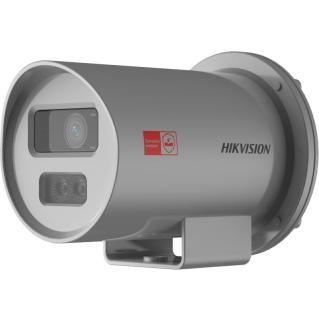

DS-2XC6046G0-LIS(316L)
316L 4MP Anti-corrosion Fixed Bullet
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON),0 Lux with light,B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Focal Length & FOV2.8 mm, horizontal FOV 96°, vertical FOV 54°, diagonal FOV 111° 4 mm, horizontal FOV 79°, vertical FOV 41°, diagonal FOV 94°
- ApertureF1.6
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeIR: up to 15 m White Light: up to 15 m
- IR Wavelength850 nm
- Video
- Main Stream50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265+/H.264/H.265/H.264+ Sub-stream: MJPEG/H.264/H.265 Third stream: H.264/H.265
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed regions for each stream
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsUDP,HTTP,DDNS,RTSP,SSL/TLS,RTP,QoS,IPv4,PPPoE,SNMP,FTP,ICMP,HTTPS,DHCP,RTCP,NTP,WebSocket,TCP/IP,IGMP,WebSockets,802.1X,DNS,IPv6,UPnP
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
- User/HostUp to 32 users 3 user levels: administrator, operator, and user
- SecurityTLS 1.2, complicated password, IP address filter, AES128/256, Password protection, watermark, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, HTTPS encryption, TLS 1.3, security audit log, 802.1X authentication(EAP-MD5), WSSE and digest authentication for Open Network Video Interface, control timeout settings
- ClientiVMS-4200,Hik-Connect
- Web BrowserPlug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask4 programmable polygon privacy masks
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
- Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Event
- Basic Event Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection,Scene change detection,audio exception detection,defocus detection
- LinkageUpload to FTP/NAS/memory card,trigger alarm output,trigger recording,notify surveillance center,audible warning
- Deep Learning Function
- Perimeter Protection Region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power12 VDC ± 10%, 0.42 A, max. 5 W, PoE: IEEE 802.3af, Class 3, max. 5 W
- Material316L stainless steel
- Dimension139.7 mm × 89 mm × 91 mm (5.5″ × 3.5″ × 3.58″)
- Package Dimension535 mm × 430 mm × 285 mm (21.06″ × 16.93″ × 11.22″)
- Approx. 1095 g (2.41 lb.)
- With Package WeightApprox. 1434 g (3.16 lb.)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat, mirror, flash log, password reset via e-mail, pixel counter, anti-banding
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- ProtectionIP68: IEC 60529-2013,IK10: IEC 62262:2002
