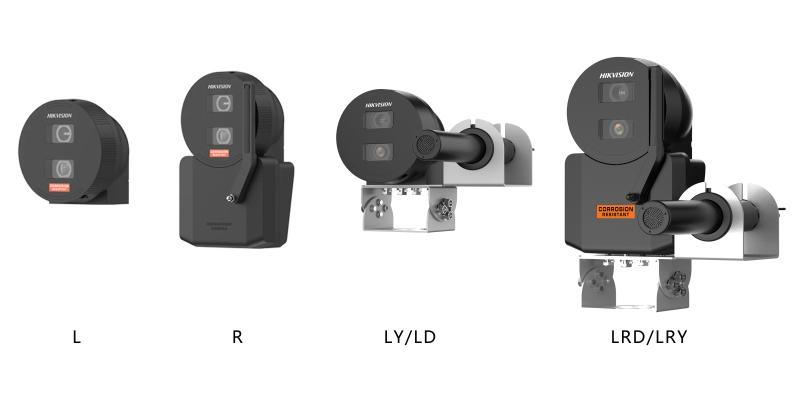

DS-2XC6243G0-L(R)(D/Y)
Polymer 4MP Underwater Fixed Bullet
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/3.0″ Progressive Scan CMOS
- Max. Resolution 2560 × 1440
- Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with light
- Shutter Time 1/3 s to 1/100,000 s
- Lens
- Lens Type Fixed focal lens, 2.8, and 4 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 99.5°, vertical FOV 55.5°, diagonal FOV 116.1° 4 mm, horizontal FOV 76.8°, vertical FOV 41.5°, diagonal FOV 90.8°
- Aperture F2.0
- Illuminator
- Supplement Light Type White Light
- Supplement Light Range NTU: 0 to 5, up to 1 m, NTU: 5 to 15, up to 0.5 m, NTU: >15, up to 0.2 m
- Video
- Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream
- Target Cropping Yes
- Network
- Protocols SSL/TLS, RTSP, TCP/IP, RTP, HTTP, QoS, PPPoE, ICMP, DDNS, UDP, UPnP, IGMP, DHCP, DNS, SNMP, IPv4, IPv6, FTP, HTTPS, 802.1X, NTP
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), WSSE and digest authentication for ONVIF,basic and digest authentication for HTTP/HTTPSF, RTP/RTSP over HTTPS, security audit log, control timeout settings
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Image
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 120 dB
- Image Enhancement BLC,HLC,3D DNR
- Privacy Mask Yes
- Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in eMMC storage, 64 GB
- Reset Key Yes
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection,scene change detection,defocus detection
- Linkage Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture
- General
- Power 12 VDC, 0.88 A, max. 10.6 W, two-core terminal terminal block, PoE: IEEE 802.3af, Class 3, max. 12.95 W
- Material -LY/LD/LRY/LRD: PTS+50%GF + stainless steel -L/LR: PTS+50%GF
- Dimension -L: 114 mm × 100.9 mm × 114.9 mm (4.49″ × 3.97″ × 4.52″), -LR: 122.1 mm × 122.7 mm × 206.6 mm (4.81″ × 4.83″ × 8.13″), -LD/LY: 192 mm × 169.1 mm × 172 mm (7.56″ × 6.66″ × 6.77″), -LRD/LRY: 196 mm × 185.4 mm × 264 mm (7.72″ × 7.30″ × 10.39″)
- Package Dimension 498 mm × 342 mm × 182 mm (19.60” × 13.46” × 7.17”)
- -L: approx. 1825 g (4.02 lb.) -LR: approx. 2040 g (4.50 lb.) -LRD: approx. 2845 g (6.27 lb.) -LRY: approx. 2490 g (5.49 lb.) -LY: approx. 1760 g (3.88 lb.) -LD: approx. 1765 g (3.89 lb.)
- With Package Weight -L: approx. 2825 g (6.23 lb.) -LR: approx. 3540 g (7.80 lb.) -LRD: approx. 4020 g (8.86 lb.) -LRY: approx. 4038 g (8.90 lb.) -LY: approx. 3345 g (7.37 lb.) -LD: approx. 3300 g (7.28 lb.)
- Storage Conditions -10 °C to 50 °C (14 °F to 122 °F)
- Startup and Operating Conditions -10 °C to 50 °C (14 °F to 122 °F)
- Language 9 languages: English, Italian, French, Portuguese, Spanish, Russian, Japanese, Korean, Thai
- General Function Heartbeat, mirror, flash log, password reset via e-mail, pixel counter, anti-banding
- Wiper -R: Yes
- Cable Length 10 m (32.81 ft.) (included)
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety CB: IEC 62368-1: 2014, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP68: IEC 60529-2013
- Anti-Corrosion Protection NEMA 4X (NEMA 250-2018),C5
- Dissolved Oxygen Sensor
- Measurement Range -LD/-LY/-LRD/-LRY: Dissolved oxygen: 0 to 20 mg/L, 0 to 200% saturation, Temperature: 0 °C to 50 °C (32 °F to 122 °F)
- Accuracy -LD/-LY/-LRD/-LRY: Dissolved oxygen: ±0.3 mg/L or ±3%, Temperature: ±0.4 °C (±32.72 °F)
- Resolution -LD/-LY/-LRD/-LRY: 0.01 mg/L
