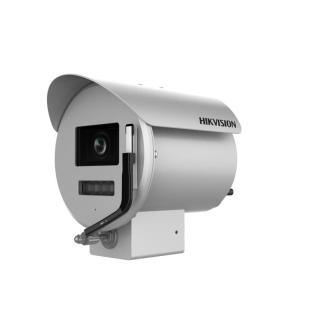

DS-2XC6686G1-LIZHRS(316L)
316L Anti-corrosion 8MP Varifocal Bullet
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON),0 Lux with light,B/W: 0.0002 Lux @ (F1.2, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Focal Length & FOV2.8 to 12 [email protected]: horizontal FOV 104.0° to 41.2°, vertical FOV 54.2° to 23.1°, diagonal FOV 126.5° to 47.3° 8 to 32 [email protected]: horizontal FOV 41.8° to 15.0°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to17.1°
- DORI
- DORI2.8 to12 mm: Wide: D: 93.8 m, O: 37.2 m, R: 18.8m, I: 9.4 m Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m 8 to 32 mm: Wide: D: 218 m, O:86.5m, R: 43.6 m, I: 21.8 m Tele: D: 580.0 m, O: 230.2 m, R: 116.0 m, I: 58.0 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light Range2.8-12mm: IR: up to 50 m; White Light: up to 30 m 8-32mm: IR: up to 80 m; White Light: up to 50 m
- IR Wavelength850 nm
- AI Open Platform
- Model SpecificationSupports 4 model packages, and each model package supports detecting 16 target types and classfing 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.
- Video
- Main Stream50 Hz：25 fps（3840 × 2160，3072 ×1728，2560 ×1440，1920 × 1080，1280 × 960，1280 × 720） 60 Hz：30 fps（3840 × 2160，3072 ×1728，2560 ×1440，1920 × 1080，1280 × 960，1280 × 720）
- Sub-Stream50 Hz：25 fps（704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
- Third Stream50 Hz：25 fps（1920 × 1080，1280 ×960，1280 ×720，704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（1920 × 1080，1280 ×960，1280 × 720，704 × 480，640 × 480，352 × 240）
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)5 fixed regions for main stream
- Target Croppingyes
- Audio
- Audio TypeMono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC_LC/MP3
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, RTCP
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/HostUp to 32 users 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2, TPM 2.0(FIPS 140-2 level 2)
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- ClientiVMS-4200,Hik-Connect
- Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image Settingssaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
- Built-in MicrophoneYes, 1 built-in microphones
- Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC, 1 A)
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart),video quality diagnosis,alarm input and output
- Smart EventUnattended baggage detection, object removal detection,Line crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, people gathering detection, fast moving detection, parking detection,scene change detection,audio exception detection,defocus detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,white light flashing
- Deep Learning Function
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- Face CaptureDetects up to 40 faces simultaneously, Supports swing left and right from -70° to +70°, tilt up and down from -50° to +50°, Uploads face with background and closed-up face pictures
- People CountingYes
- Queue ManagementSupports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Road Traffic and Vehicle DetectionBlocklist and allowlist: up to 10,000 records Captures vehicle that has no license plate Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
- Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
- On/Off Duty DetectionSupports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: absence detection, on/off duty detection Supports parameter settings: person on duty, absence duration
- General
- PowerDC: 9 V to 36 V, 2.9 A to 0.7 A, max. 26W; PoE (IEEE 802.3at class 4), max. 22 W
- MaterialSUS316L with anti-corrosion coating
- Dimension200.8 mm × 165.9 mm × 141 mm (7.91″ × 6.53″ × 5.55″)
- Package Dimension350 mm × 270 mm × 258 mm (13.78″ × 10.63″ × 10.16″)
- Approx. 2.82 kg (6.22 lb.)
- With Package WeightApprox. 3.76 kg (8.29 lb.)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- WiperYes
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- ProtectionIP68: IEC 60529-2013,IK10: IEC 62262:2002
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
