描述
海康威視 DS-2XE2707CB-M12(316L) 是 316L 不鏽鋼防爆控制箱，內置 AC 100–240V 轉 DC 12V／2A 電源，外形尺寸 534 × 506.2 × 236.5 mm，操作溫度 -40 °C 至 60 °C。香港防盜為安裝商及經銷商，規格以原廠為準。

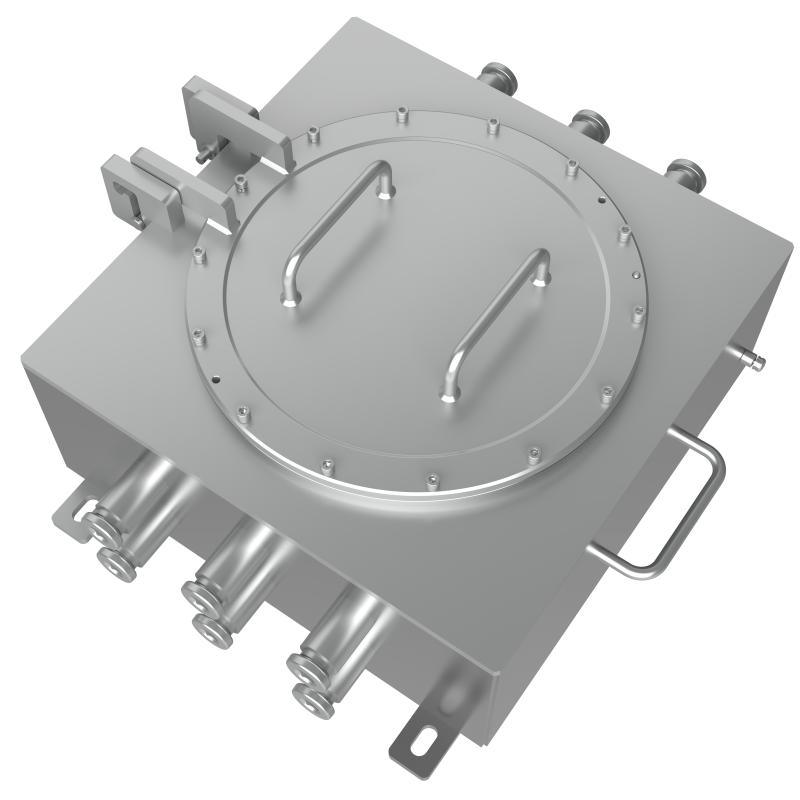

DS-2XE2707CB-M12(316L)
316L Explosion Proof Control Box with Built-in Power Adaptor
- General
- PowerRated input : AC 100 ~ 240V Rated output : DC 12V / 2A
- Materialstainless steel 316L
- DimensionOverall Dimension: 534.0 mm × 506.2 mm × 236.5 mm (21.02″ × 19.93″ × 9.3″), Internal Dimension: 400.0 mm × 400.0 mm × 165.0 mm (15.75″ × 15.75″ × 6.5″)，with 1 power adapter
- Package Dimension642 mm × 642 mm × 340 mm (25.28″ × 25.28″ × 13.39″)
- Approx. 54.5 kg (120.2 lb.)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Approval
- ProtectionIP66: IEC 60529-2013,IP68: IEC 60529-2013
- Explosion-Proof ProtectionEx db ⅡC T6 Gb/Ex tb ⅢC T80°C Db
