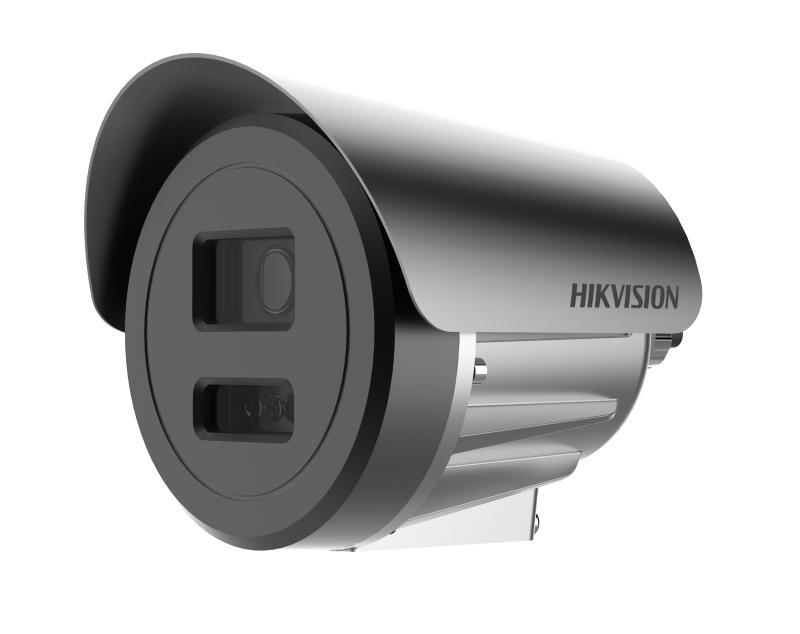

DS-2XE6646G0-LIZS(ADC)
Aluminum Alloy 4MP Explosion-Proof Vari-focal Bullet
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor1/2.7″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON),0 Lux with light,B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 95° to 31.3°, vertical FOV 50.9° to 17.6°, diagonal FOV 112.1° to 36.1°
- DORI
- DORI2.8 to 12 mm: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeIR: up to 50 m White Light: up to 30 m
- IR Wavelength850 nm
- HEOP
- Open ResourcesMemory: 60 MB, Smart RAM: 371 MB, eMMC: 2 GB
- Computing Power1.5 TOPS
- Open CapabilityHEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability
- Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
- Programming LanguageC
- Video
- Main Stream50 Hz：25 fps（2688 × 1520，2560 × 1440，1920 × 1080，1280 × 720） 60 Hz：30 fps（2688 × 1520，2560 × 1440，1920 × 1080，1280 × 720）
- Sub-Stream50 Hz：25 fps（704 × 576，640 × 480） 60 Hz：30 fps（704 × 480，640 × 480）
- Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)5 fixed regions for main stream
- Target CroppingYes
- Audio
- Audio TypeMono sound
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC_LC/MP3
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, RTCP
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
- Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC, 1 A)
- Power Output12 VDC, max. 30 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventUnattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
- Deep Learning Function
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power12 VDC ± 20%, 1.1 A, max. 13.2 W,3-core terminal block, PoE: 802.3at, Class 3, max. 15 W
- MaterialAnodized ADC12
- Dimension245.0 mm × 195.4 mm × 184.3 mm (9.65″ × 7.69″ × 7.26″)
- Package Dimension430 mm × 250 mm × 275 mm (16.93″ × 9.84″ × 10.83″)
- Approx. 3300 g (7.28 lb.)
- With Package WeightApprox. 4400 g (9.70 lb.)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Cable Length1.3 m or 5 m (4.26 ft. or 16.40 ft.)
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015,FCC: 47 CFR Part 15, Subpart B
- SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
- ProtectionIP68: IEC 60529-2013,IK10: IEC 62262:2002
- Explosion-Proof ProtectionATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68 IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85 °C; For flammable dust atmospheres, the maximum surface temperature is 80 °C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
