描述
HIKVISION DS-3E0310P-E/M(B) 8 Port Fast Ethernet Unmanaged POE Switch 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。
DS-3E0310P-E/M(B)

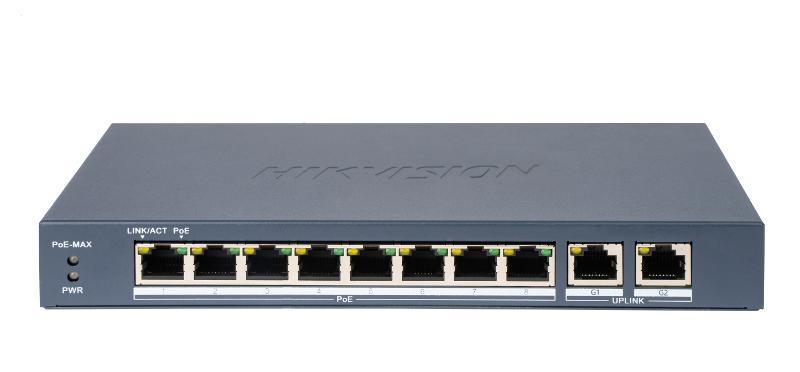

8 Port Fast Ethernet Unmanaged POE Switch
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- ShellMetal material
- Net Weight0.555 kg (1.22 lb)
- Gross Weight1.20 kg (2.65 lb)
- Dimensions (W × H × D)217.60 mm × 27.60 mm × 108.50 mm (8.56” × 1.08” × 4.27”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply54VDC, 1.6A
- Max. Power Consumption86 W
- Power Consumption in Idle5 W
- Installation ModeDesk-Mounted,Wall-Mounted
- Surge Protection6 kV
- Network Parameters
- Ports8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
- MAC Address Table8 K
- Switching Capacity5.6 Gbps
- Packet Forwarding Rate4.17 Mpps
- Internal Cache4 Mbits
- Dialing Function
- Long RangePorts 1 to 8 : up to 300 m. Long range performance may vary depend on camera model or cable condition.
- PoE Power Supply
- PoE StandardIEEE 802.3af;IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget80 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
