描述

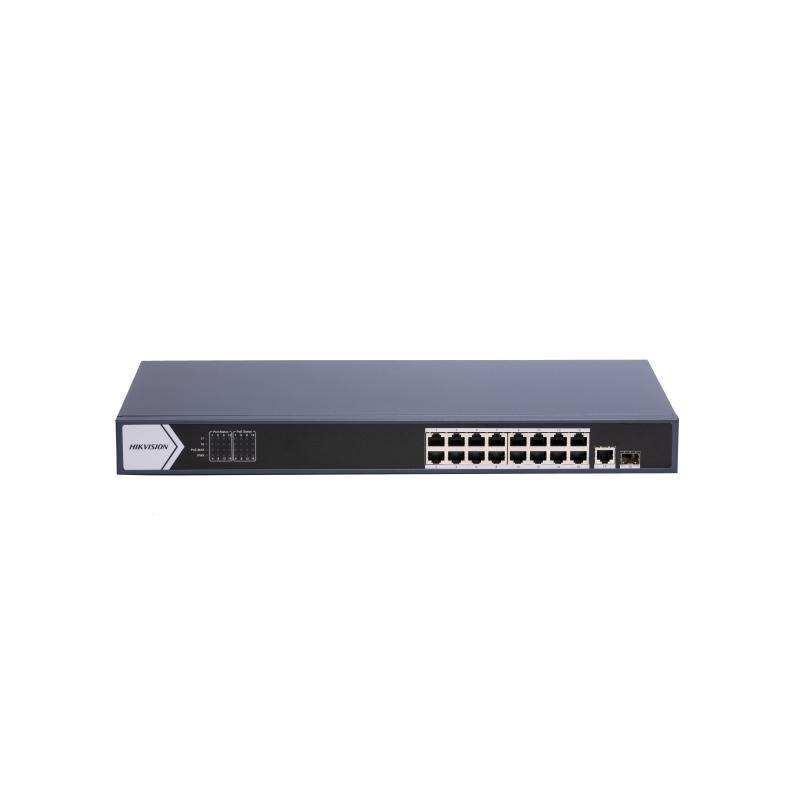

HIKVISION DS-3E0518P-E (B) 16 Port Gigabit Unmanaged POE Switch 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。
DS-3E0518P-E (B)
16 Port Gigabit Unmanaged POE Switch
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- ShellMetal material
- Net Weight2.67 kg (5.89 lb)
- Gross Weight3.53 kg (7.78 lb)
- Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
- Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100~240 VAC, 50/60 Hz, Max. 4 A
- Max. Power Consumption250 W
- Power Consumption in Idle20 W
- Installation ModeDesk-Mounted,Rack (equipped with mounting ears)
- Surge Protection6 KV
- Network Parameters
- Ports16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table8 K
- Switching Capacity36 Gbps
- Packet Forwarding Rate26.78 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 16
- Max. Port Power30 W
- PoE Power Budget230 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
