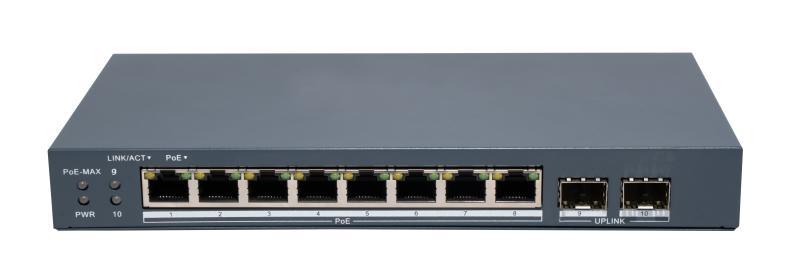

HIKVISION DS-3E1510P-EI/M-8P2F 8 Port Gigabit Smart POE Switch 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。
DS-3E1510P-EI/M-8P2F
8 Port Gigabit Smart POE Switch
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- ShellMetal material
- Net Weight0.54 kg (1.19 lb)
- Gross Weight1.08 kg (2.38 lb)
- Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57” × 1.09” × 4.27”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply54VDC, 1.6A
- Installation ModeDesk-Mounted,Wall-Mounted
- Max. Power Consumption86 W
- Power Consumption in Idle2.5 W
- Surge Protection6 kV
- Network Parameters
- Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- Internal Cache1.5 Mbits
- Software Function
- Long RangePorts 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
- Port IsolationPorts 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
- Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 3 aggregation groups.
- Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
- VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
- HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
- System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget80 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryReach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
