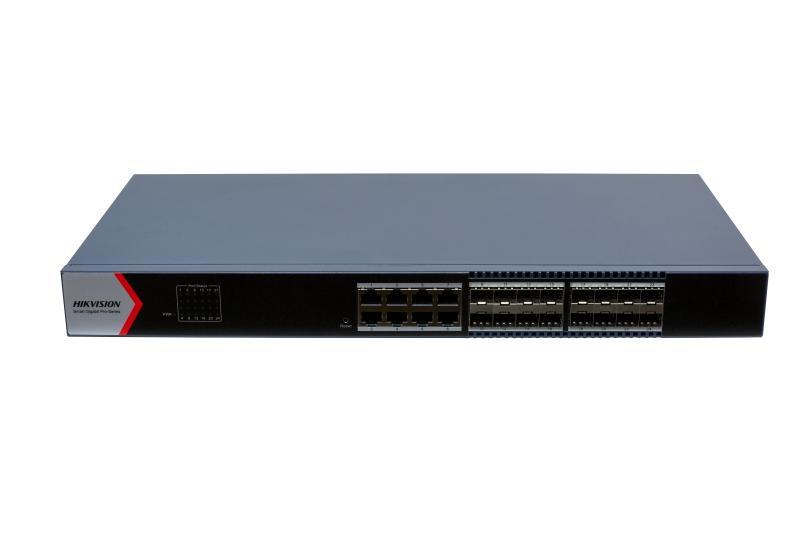

HIKVISION DS-3E1524-SI-16F8T 24 Port Aggregation Switch

HIKVISION DS-3E1524-SI-16F8T 24 Port Aggregation Switch

查詢價錢

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

WhatsApp 查詢此型號 預約免費勘察
  • 持牌安裝（保安公司牌照 1507）
  • 原廠行貨，原廠保用
  • 全港免費上門勘察
貨號: DS-3E1524-SI-16F8T 分類: , ,

描述

HIKVISION DS-3E1524-SI-16F8T 24 Port Aggregation Switch 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。

相關方案：閉路電視、閉路電視安裝、佈線工程。選型可先參閱以上方案頁；原廠規格見下方。

DS-3E1524-SI-16F8T

24 Port Aggregation Switch

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

  • General
  • ShellMetal material
  • Net Weight2.3 kg (5.07 lb)
  • Gross Weight2.82 kg (6.22 lb)
  • Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.32”× 1.73”× 8.69”)
  • Operating Temperature0°C to 45°C (0 °F to 113 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply100-240V,50/60Hz,2A Max
  • Installation ModeRack (equipped with mounting ears)
  • Max. Power Consumption20 W
  • Power Consumption in Idle5 W
  • Surge Protection6 kV
  • Network Parameters
  • Ports8 × Gigabit RJ45 port,16 × Gigabit fiber optical port
  • MAC Address Table8 K
  • Switching Capacity56 Gbps
  • Packet Forwarding Rate41.66 Mpps
  • Internal Cache4.1 Mbits
  • Software Function
  • Port IsolationPorts 1 to 24: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
  • QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
  • Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. Support G.8032 ERPS.
  • VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
  • HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
  • System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating.
  • Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
  • Storm ControlStorm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
  • DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
  • ACLSupport ACL definitions based on source/destination MAC address, source/destination IP address, IP protocol type. Support ACL application on ports. Support IPv4 ACL and MAC ACL configurations. Support inbound ACLs.
  • IPSGIPSG can control the security of port access device. Support port, MAC, IP binding. Support 256 security table entries.
  • Approval
  • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Safety CE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

交換機安裝、調試、保養及維修

香港防盜（持牌主體傑成系統有限公司 KNS SYSTEM LTD）為海康威視傳輸／網絡設備的安裝商及經銷商，保安牌照 1507、電業承辦商 029394。工作包括機櫃、PoE 預算、VLAN、上聯光／電口。保養包括溫度、韌體及連接核對。PoE 功率以原廠規格為準。

查詢 2122-9527，WhatsApp 9439-8568。保養見保安系統保養。閉路電視見閉路電視。
