描述
HIKVISION DS-3WR12GC-H AC1200 Gigabit Mesh Wireless Router 是海康威視無線傳輸設備（路由器、AP、延伸器或 USB 適配器）。香港防盜為安裝商及經銷商。覆蓋以現場測試為準。

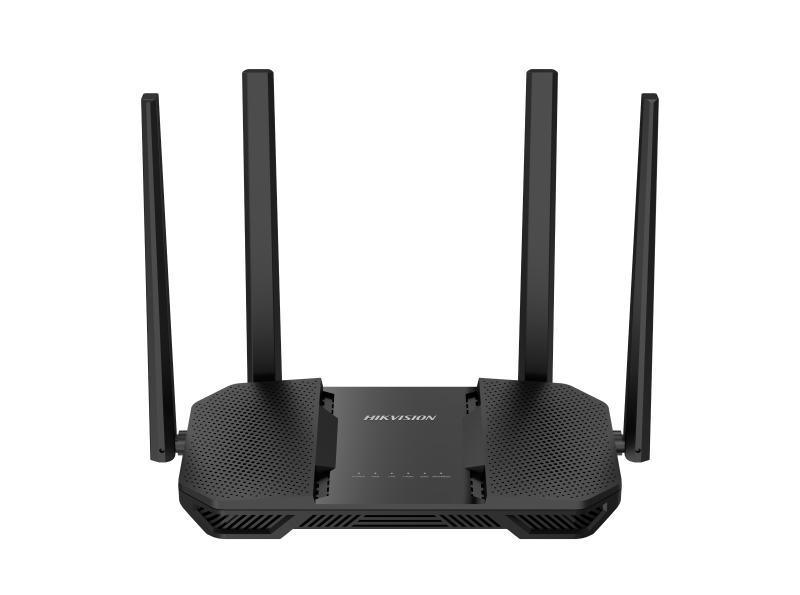

DS-3WR12GC-H
AC1200 Gigabit Mesh Wireless Router
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- Product Dimensions (W × H × D)254.9 mm×142.5 mm×192.5 mm
- Package Dimensions (W × H × D)277 mm×250 mm×55 mm
- Net Weight0.290kg
- Gross Weight0.619kg
- Packing List1200Mbps Wi-Fi5 Router x 1 Power Supply Adaptor × 1 CAT5e Network Cable × 1 Quick Start Guide × 1 Regulatory Compliance and Safety Information ×1 Product Flyer×1
- Packing MethodSingle pack
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH non-condensing
- Storage Humidity5% to 95% RH non-condensing
- Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Installation ModeDesk-Mounted,Wall-Mounted
- Wireless Parameter
- Wireless StandardIEEE 802.11a/n/ac @5GHz IEEE 802.11b/g/n @2.4GHz
- Working Frequency Band2.4 GHz，5 GHz
- Wireless RangeUp to1184 ft²/110 m² （Recommend coverage for home use, actual Wi-Fi range varies depending on the layout and wall materials）
- Max. Connections128
- Recommended Connections40
- Transmitting PowerCE： ＜20 dBm(2.4GHz) ＜23 dBm(5GHz)
- Wireless FeaturesDual Band Supported
- Antenna4 high gain antennas
- Antenna Gain5 dBi
- Receiving Sensitivity5GHz: -88.5dBm@11AC80-MCS0 -63.5dBm@11AC80-MCS9 2.4GHz: -91dBm@HT40-MCS0 -72dBm@HT40-MCS7
- Max. Wi-Fi Speed≤ 1200 Mbps 5GHz: 866Mbps 2.4GHz: 300Mbps
- Hardware Parameter
- Network Interface1 × 10/100/1000 Mbps Adaptive WAN Port 4 × 10/100/1000 Mbps Adaptive LAN Ports
- LED IndicatorPower WAN LAN 2.4 GHz Wi-Fi 5 GHz Wi-Fi WPS/MESH
- ButtonReset button, WPS/MESH Button
- RAM128MB DDR2
- ROM128MB NAND
- Power Supply MethodPower Supply Adapter
- Power SpecificationsDC 12 V, 1 A
- Max. Power Consumption≤11 W
- Software Function
- Operating ModeRouter Mode Wireless Extender Mode Access Point Mode
- WAN ModeDHCP Static IP PPPOE
- DHCPDHCP Client List DHCP Server
- IP VersionIPv4 IPv6
- Parental ControlSpeed Limit,Internet Access Period,Filter URL,Parental Control,Custom Profiles
- FirewallForbid TCP SYNC flood attack Forbid ICMP flood attack
- DDNSOray, No-IP,DynDNS
- VPNPPTP Server,L2TP Server,PPTP Client,L2TP Client,OpenVPN Server,OpenVPN Client
- NAT ForwardingPort Mapping DMZ UPnP
- OthersVLAN/IPTV,IGMP,Quick Diagnosis,WIFI Optimization,Ping/Tracert
- MESHHikvision Mesh
- Security ModeWPA2-PSK,WPA/WPA2-PSK supported
- Security MechanismSupport fast and secure WPS connection Support hiding wireless network name Support controlling terminal network connection Support firewalls Login Authentication
- Management MethodWeb Control: PC, mobile App Control: HPP, HC TR069(TR098/TR181)
- UpgradeWeb Upgarde App Cloud Upgrade Auto Upgrade
- System LogSystem log
- Roaming802.11k/v
