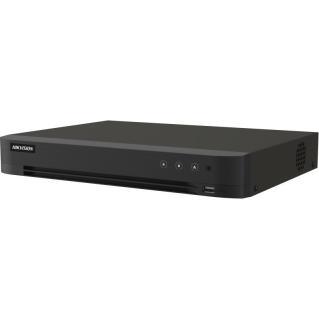

HIKVISION DS-7204HQHI-S1/XT 4-ch HQ 1U H.265 PowerX DVR

HIKVISION DS-7204HQHI-S1/XT 4-ch HQ 1U H.265 PowerX DVR

4-ch HQ 1U H.265 PowerX DVR

  • 4-ch Analog video inputs, Encoding ability up to 3K/5MP Lite@12fps
  • 4-ch Guanlan AI Encoding for saving recording storage effectively
  • Support 1-ch Facial Recognition or 2-ch Perimeter Protection based on Deep Learning algorithm
  • Support 4-ch AcuSearch, helping users quickly find target in recordings
  • Support All channels Motion Detection Technology
  • Up to 6-ch IP video inputs, each channel up to 6MP
  • Support 4-ch HDTVI Two-Way Audio via BNC
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

貨號: DS-7204HQHI-S1-XT 分類: , ,

描述

DS-7204HQHI-S1/XT

4-ch HQ 1U H.265 PowerX DVR

Specification

Video And Audio

  • HDTVI Input3K(3328 x 1504)@20 fps, 3K(2960 x 1664)@25/20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 2K(2304 x 1296)@20 fps, 1080P@25/30 fps, 720P@25/30 fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps HDCVI Input 3K(2880 × 1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps CVBS Input PAL/NT
  • Audio Output1-ch RCA
  • Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ); 4-ch coaxial audio via BNC
  • Two-Way Audio4-ch two-way audio via BNC , Support two-way audio from DVR local, web and Hik -Connect to analog camera; Use the first RCA audio input if the two -way audio from DVR local to analog camera Synchronous Playback Up to 4-ch Recording

Decoding

  • Video CompressionAI Encoding/H.265/H.264
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u Audio Bitrate 64 Kbps

Network

  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP API ONVIF (profile S/G), SDK, ISAPI, ISUP Compatible Browser IE, Chrome, Firefox, Safari, Edge Ports

Auxiliary Interface

  • SATA1 SATA interface, up to 10 TB capacity for each disk Serial Interface 1 RS-485 (half -duplex)
  • CapacityMain stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12 fps; 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 5 MP stream access: 5 MP lite@12 fps; 4 MP lite/1080p@15 f ps; 720p/WD1/4CIF/VGA/CIF@20 fps For 2K stream access: 2K@10 fps; 1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@20 fps For 4 MP stream access: 4 MP lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Alarm In/OutN/A (optional to support) VGA 1-ch Audio In 1-ch (up to 4-ch is optional) RCA (2.0 Vp-p, 1 KΩ); 4-ch via coaxial cable Audio Out 1-ch, RCA (Linear, 1 KΩ) Network Port 1, RJ45 10/100 Mbps self-adaptive Ethernet interface HDMI 1-ch General Installation Desktop Net

General

  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 18 W
  • Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
  • Working Humidity10% to 90%
  • Weight≤ 1.5 kg Gross Weight ≤ 2 kg Product Dimensions 319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch) Packaging Dimensions 420 × 297 × 83 mm (16.5 × 11.7 × 3.3 inch) Packaging Method A pack of eight Packing List DVR *1 Quick Start Guide *1 Adapter and Power cable*1 Mouse *1 SATA Power cable *1 SATA Data cable *2 Several Screws

Certification

  • Obtained CertificationCB, IC, RCM, LOA
  • CECE-LVD, CE-EMC

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。 官方規格書 PDF
