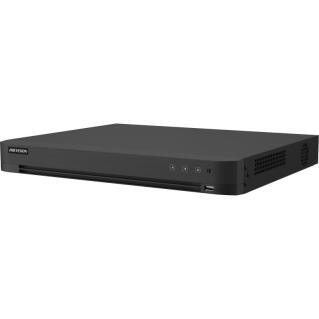

HIKVISION DS-7208HUHI-S2/XT 8-ch HU 1U H.265 PowerX DVR

查詢價錢

8-ch HU 1U H.265 PowerX DVR

8-ch Analog video inputs, Encoding ability up to 4K/8MP @ 8fps or 3K/5MP @12fps
8-ch Guanlan AI Encoding for saving recording storage effectively
Support 4-ch Facial Recognition or 8-ch Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch, helping users quickly find target in recordings
Support All channels Motion Detection Technology
Up to 16 channels IP camera inputs, each channel up to 8MP
Up to 24*1080P@30fps decoding ability
Support 8-ch HDTVI Two-Way Audio via BNC

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

描述

DS-7208HUHI-S2/XT

8-ch HU 1U H.265 PowerX DVR

HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps, 3K(3328 x 1504)@20 fps, 2K(2304 x 1296)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30 fps HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880 × 16 20)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)
Audio Output1-ch RCA
Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ); 8-ch coaxial audio via BNC
Two-Way Audio8-ch two-way audio via BNC , Support two-way audio from DVR local, web and Hik -Connect to analog camera; Use the first RCA audio input if the two -way audio from DVR local to analog camera Recording

Video CompressionAI Encoding/H.265/H.264
Stream TypeVideo, Video & Audio
Audio CompressionG.711u Audio Bitrate 64 Kbps Network API ONVIF (profile S/G), SDK, ISAPI, ISUP Compatible Browser IE, Chrome, Firefox, Safari, Edge

Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP Ports

SATA2 SATA interface, up to 10 TB capacity for each disk Serial Interface 1 RS-485 (half -duplex)
CapacityMain stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/2K@20 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate 32 Kbps to 10 Mbps Dual -Stream Support main stream or sub stream
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/OutN/A (optional to support) VGA 1-ch Audio In 1-ch (up to 8-ch is optional) RCA (2.0 Vp-p, 1 KΩ); 8-ch via coaxial cable Audio Out 1-ch, RCA (Linear, 1 KΩ) Network Port 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface HDMI 1-ch General Installation Desktop Net

Power Supply12 VDC, 3.33 A
Consumption≤ 40 W
Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
Working Humidity10% to 90%
Weight≤ 2 kg Gross Weight ≤ 3.5 kg Product Dimensions 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch) Packaging Dimensions 435 × 387 × 129 mm (17.1 × 15.2 × 5.0 inch) Packaging Method A pack of four Packing List DVR *1 Quick Start Guide *1 Adapter and Power cable*1 Mouse *1 SATA Power cable *1 SATA Data cable *2 Power cord *1 Several Screws

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。官方規格書 PDF
