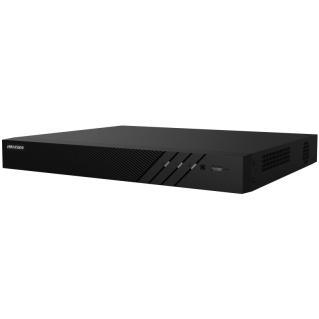

HIKVISION DS-7616NI-Q2/16P(E) 16-ch 1U Q Series POE NVR

Video And Audio

• IP Video Input16-ch
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• Video Output ModeHDMI/VGA simultaneous output
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,
• VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;,HDMI/VGA simultaneous output,
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω ) Recording

Decoding

• Decoding FormatH.265+,H.265,H.264+,H.264
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback16-ch
• Decoding CapabilityAI&4K Off: 8-ch@1080p(30fps) AI/4K On: 6-ch@1080p(30fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Remote Connection32
• PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
• PoE StandardIEEE 802.3 af/at
• PoE Budget≤ 150W

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 8 TB capacity for each disk
• USB Interface2 × USB 2.0
• Alarm In/OutN/A (4/1 is optional)

General

• Power SupplyAC100V~240V，190W
• Consumption≤ 10 W (without enabling PoE)
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)384 × 315 × 52 mm (15.12″ × 12.38″ × 2.03″)
• Weight≤ 3.7 kg (8.1 lb)

Certification

• CE55032/55035/61000 -3-2/61000-3-3/50130 -4
