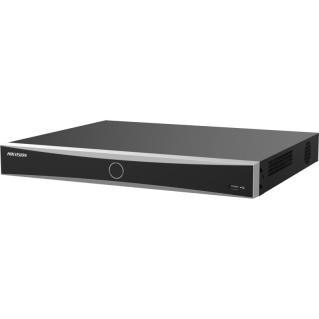

HIKVISION DS-7632NXI-K2/16P(E) 32-ch PoE 1U K Series AcuSense 4K NVR

Video And Audio

• IP Video Input32-ch
• Incoming Bandwidth256 Mbps
• Outgoing Bandwidth160 Mbps
• IP Speaker Input4-ch
• Video Output ModeHDMI/VGA independent output
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding FormatH.265/H.265+/H.264/H.264+
• Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 16 MP is only available for channel 1.
• Synchronous playback16-ch
• Decoding CapabilityAI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channe l 4 MP@30 fps, 10-channel 3 MP@30fps, 16-channel 2 MP@30fps AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 10-channel 4 MP@30 fps, 13-chann el 3 MP@30fps, 20-channel 2 MP@30fps
• Stream TypeVideo,
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91,or above version
• PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE StandardIEEE 802.3af/at
• PoE Budget≤ 200W

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 General GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai , Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Hebrew,
• Alarm In/Out4/1

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 15 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)384 mm × 317 mm × 52 mm (15.12 × 12.48 × 2.03 inch)
• Weight≤ 3kg (without HDD, 6 lb.)

Certification

• Obtained CertificationCE,CB,REACH,WEEE,UKCA,RCM,IC  Function
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017
