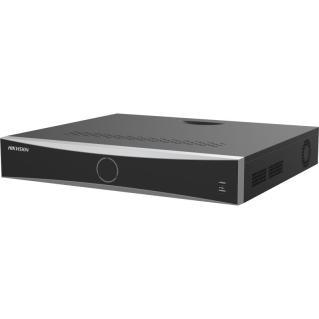

HIKVISION DS-7716NXI-K4/16P(E) 16-ch PoE 1.5U K Series AcuSense 4K NVR

Video And Audio

• IP Video Input16-ch
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth160 Mbps
• IP Speaker Input4-ch
• Video Output ModeHDMI/VGA independent output
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )

Decoding

• Decoding FormatH.265, H.265+, H.264, H264+
• Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 16 MP is only available for channel 1. Synchronous 16-ch Playback
• Decoding CapabilityAI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channe l 4 MP@30 fps, 10-channel 3 MP@30fps, 16-channel 2 MP@30fps AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 10-channel 4 MP@30 fps, 13-channel 3 MP@30fps, 16-channel 2 MP@30fps
• Stream TypeVideo,
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91,or above version
• PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE StandardIEEE 802.3af/at
• PoE Budget≤ 200W

Auxiliary Interface

• SATA4 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD Serial Interface 2 RS-485 (half -duplex), 1 RS-232
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 General GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Hebrew, U
• Alarm In/OuteSATA

General

• Power Supply100 to 240 VAC, 50 to 60Hz
• Consumption≤ 50 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)440 × 391 × 72 mm (17.32 × 15.39 × 2.82 inch)
• Weight≤ 5kg (without HDD, 10 lb.)

Certification

• Obtained CertificationCE,CB,REACH,WEEE,UKCA,RCM,IC  Function
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017
