描述
DS-D5019S0-1P0

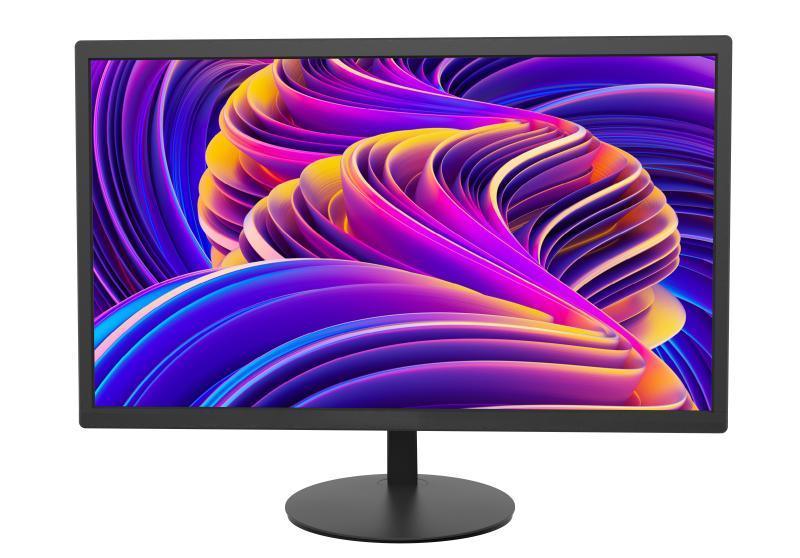

18.5 inch HD Borderless Monitor
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Display
- Screen Size18.5 inch
- Active Display Area409.8 (H) mm × 230.4 (V) mm
- Resolution1366 × 768
- BacklightE-LED
- Pixel Pitch0.300 mm (H) × 0.300 mm (V)
- Brightness200 cd/m²
- Viewing Angle178° (H) / 178° (V)
- Color Depth8bit , 16.7 M
- Contrast Ratio1000 : 1
- Response Time14 ms
- Refresh RateMax. 75Hz , Typ. 60 Hz
- HazeHaze 25%, 3H
- Reliability7 × 12 H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI 1.4 × 1, VGA × 1
- Video & Audio OutputNone
- Data Transmission InterfaceNone
- Control InterfaceNone
- Power
- Power SupplyDC 12V, 2.0A
- Power Consumption≤ 24 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- Casing MaterialPlastic
- VESA75 mm × 75mm (4 – M4 × 6 mm)
- Bezel Width17.84mm (left/right), 18.39 mm (top)，26.39 mm (bottom)
- Product Dimensions (W × H × D)With base: 447.00 (W) mm × 351.04 (H) mm ×200.21(D) mm （17.60″ × 13.82″ × 7.88″ inch） Without base: 447.00(W) mm × 276.00 (H) mm × 46.00 (D) mm (17.60″ × 10.87″ × 1.81″ inch )
- Package Dimensions (W × H × D)487 (W) mm × 363 (H) mm × 97 (D) mm
- Net Weight1.9 ± 0.5 kg ( 4.19 + 1.1 lb)
- Gross Weight2.4 ± 0.5 kg (5.29 + 1.1 lb)
- Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
- RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
